ON SemiconductorMMBT2222ALT1G
MMBT2222ALT1GDiscrete Semiconductor Products,Transistors - Bipolar (BJT) - SingleTRANS NPN 40V 0.6A SOT23
Aisa Part#: A13-MMBT2222ALT1G
Manufacturer Part #: MMBT2222ALT1G
Product Category: Discrete Semiconductor Products,Transistors - Bipolar (BJT) - Single
Manufacturer: ON Semiconductor
Package Type: TO-236-3, SC-59, SOT-23-3
DataSheet:
DataSheet
DataSheetSpecifications
- Factory Lead Time:10 Weeks
- Lifecycle Status:ACTIVE (Last Updated: 6 days ago)
- Surface Mount:YES
- Package / Case:TO-236-3, SC-59, SOT-23-3
- Mounting Type:Surface Mount
- Contact Plating:Tin
- Number of Pins:3
- Transistor Element Material:SILICON
- hFEMin:100
- Number of Elements:1
- Collector-Emitter Saturation Voltage:300mV
- Collector-Emitter Breakdown Voltage:40V
- Published:2006
- Series:Automotive, AEC-Q101
- Packaging:Tape & Reel (TR)
- Operating Temperature:-55°C~150°C TJ
- JESD-609 Code:e3
- Pbfree Code:yes
- Part Status:Active
- Moisture Sensitivity Level (MSL):1 (Unlimited)
- Number of Terminations:3
- ECCN Code:EAR99
- Type:General Purpose
- Voltage - Rated DC:40V
- Max Power Dissipation:300mW
- Terminal Position:DUAL
- Terminal Form:GULL WING
- Peak Reflow Temperature (Cel):260
- Current Rating:600mA
- Frequency:300MHz
- Time@Peak Reflow Temperature-Max (s):40
- Base Part Number:MMBT2222A
- Pin Count:3
- Element Configuration:Single
- Power Dissipation:225mW
- Transistor Application:SWITCHING
- Gain Bandwidth Product:300MHz
- Transistor Type:NPN
- Collector Emitter Voltage (VCEO):40V
- Max Collector Current:600mA
- DC Current Gain (hFE) (Min) @ Ic, Vce:100 @ 150mA 10V
- Current - Collector Cutoff (Max):10nA ICBO
- Vce Saturation (Max) @ Ib, Ic:1V @ 50mA, 500mA
- Transition Frequency:300MHz
- Max Breakdown Voltage:40V
- Collector Base Voltage (VCBO):75V
- Emitter Base Voltage (VEBO):6V
- Max Junction Temperature (Tj):150°C
- Turn Off Time-Max (toff):285ns
- Width:1.3mm
- Length:2.9mm
- Height:1.11mm
- RoHS Status:ROHS3 Compliant
- Radiation Hardening:No
- REACH SVHC:No SVHC
- Lead Free:Lead Free
Functional compatible component
Form,Package,Functional compatible component
Customers Also Bought 15 Items
LTC2637IDE-HMI8#PBFAnalog DevicesDigital to Analog Converters - DAC Octal 12-/10-/8-B I2C VOUT DACs w/ 10ppm View- LTC3374AIFE#PBFAnalog DevicesConv DC-DC 2.7V to 5.5V Synchronous Step Down Octal-Out 0.8V to 5.5V 1A/1A/1A/1A/1A/1A/1A/1A Automotive 38-Pin TSSOP EP Tube View
- LT3089IR#TRPBFAnalog DevicesLDO Regulator Pos 0V to 34.5V 0.8A Automotive 8-Pin(7 Tab) DDPAK T/R View
Related Models 10 Items
FTS-103-04-L-DConn Unshrouded Header HDR 6 POS 1.27mm Solder ST Thru-HoleRectangular Connecto$1.17506View

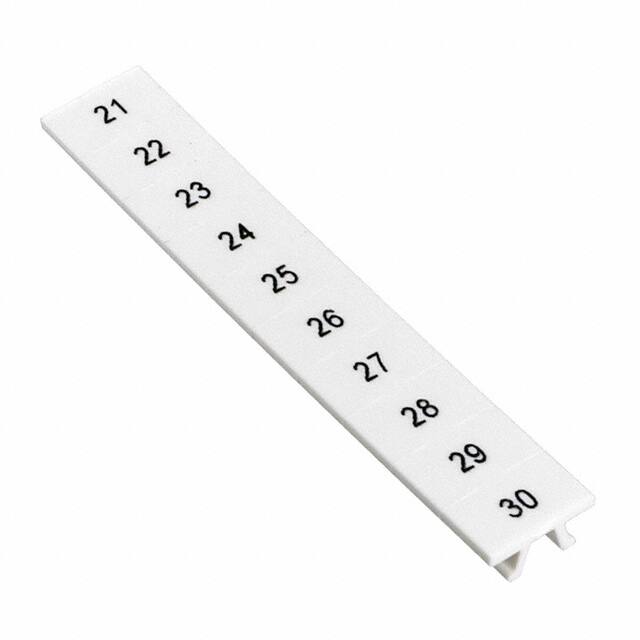

0808671:0021Terminal Block Tools & Accessories ZBF 5 LGS CONSEC NUMBERSTerminal Blocks - Ac$1.96919View
