Analog DevicesMAX15492GTA T
MAX15492GTA TIntegrated Circuits (ICs),PMIC - Gate DriversIC HALF-BRIDGE TDFN-8
Aisa Part#: A20-MAX15492GTA T
Manufacturer Part #: MAX15492GTA T
Product Category: Integrated Circuits (ICs),PMIC - Gate Drivers
Manufacturer: Analog Devices

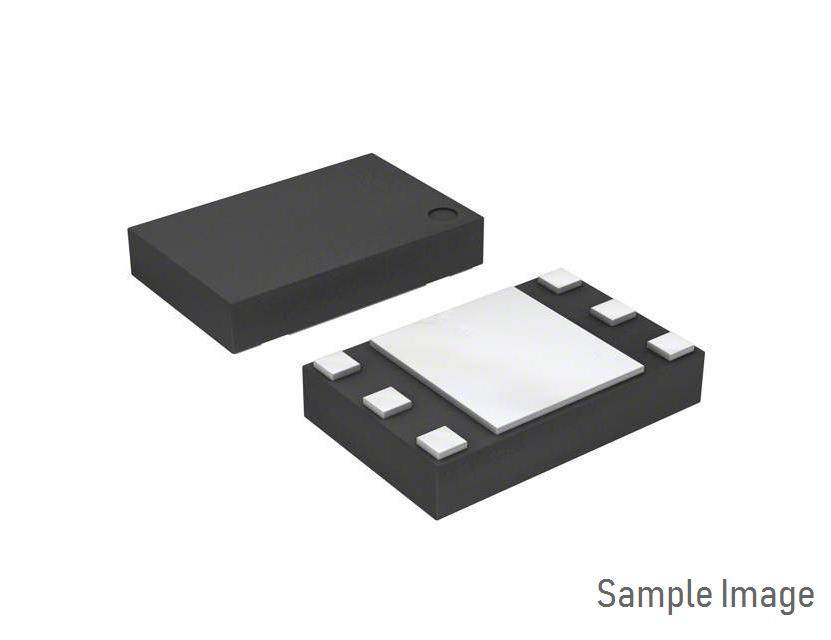

Package Type: 8-WFDFN Exposed Pad
DataSheet:
DataSheet
DataSheetSpecifications
- Mounting Type:Surface Mount
- Package / Case:8-WFDFN Exposed Pad
- Supplier Device Package:8-TDFN-EP (2x2)
- Package:Tape & Reel (TR)
- Base Product Number:MAX154
- Mfr:Analog Devices Inc./Maxim Integrated
- Product Status:Active
- Logic voltage-VIL, VIH:-
- Driver Configuration:Half-Bridge
- Operating Temperature:-40°C ~ 150°C (TJ)
- Series:-
- Voltage - Supply:4.2V ~ 5.5V
- Input Type:Non-Inverting
- Rise / Fall Time (Typ):14ns, 7ns
- Channel Type:Synchronous
- Number of Drivers:2
- Gate Type:N-Channel MOSFET
- Current - Peak Output (Source, Sink):2.2A, 2.7A
- High Side Voltage - Max (Bootstrap):30 V
Customers Also Bought 15 Items

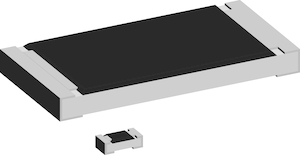

CRCW121816R0JNEKVishayRes Thick Film 1218 16 Ohm 5% 1W ±200ppm/C Wide Terminal SMD Automotive T/R View
TFPT1206L1001FMVishayThermistor PTC 1K Ohm 1% 2-Pin 1206 Surface Mount Solder Pad T/R Automotive View

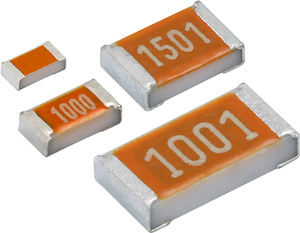

CRCW0603127RFKEAVishayCRCW FIXED RESISTOR 0603 (1608Metric) Chip Resistor ±1% ±100ppm/C 127Ohm 0.1W 1/10W View
