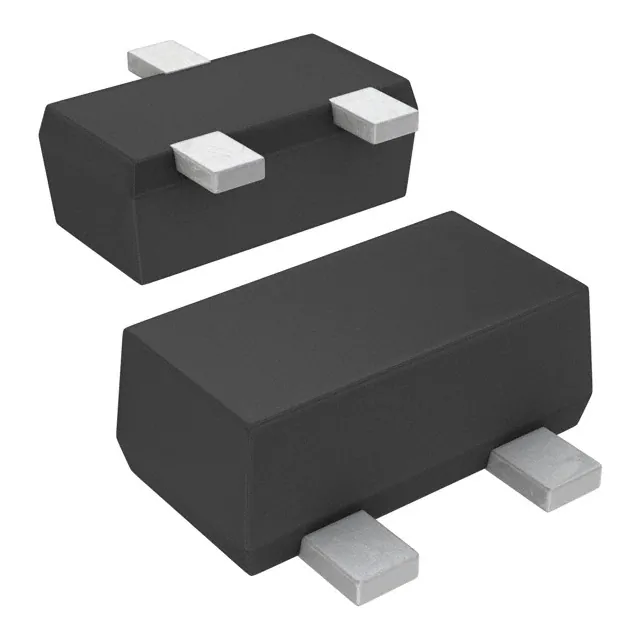

NC7SVL08P5X Integrated Circuits (ICs),Logic - Gates and InvertersAND Gate IC 1 Channel SC-70-5

DataSheet

Quantity:

Details Information

Aisa Part#: A19-NC7SVL08P5X

Manufacturer Part #: NC7SVL08P5X

Product Category: Integrated Circuits (ICs),Logic - Gates and Inverters

Manufacturer: ON Semiconductor

Package Type: 5-TSSOP, SC-70-5, SOT-353

CAD Model:

Altium Eagle OrCad PADS KiCad

By downloading CAD models from Asia, you agree to our Terms & Conditions and Privacy Policy.

Specifications

Mfr: ON Semiconductor
Series: 7SVL
Package: Tape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part Status: Active
Mounting Type: Surface Mount
Features: -
Operating Temperature: -40°C ~ 85°C
Base Product Number: NC7SVL
Package / Case: 5-TSSOP SC-70-5 SOT-353
Voltage - Supply: 0．9V ~ 3．6V
Supplier Device Package: SC-70-5
Logic Type: AND Gate
Number of Inputs: 2
Current - Output High Low: 24mA 24mA
Number of Circuits: 1
Max Propagation Delay @ V Max CL: 3．5ns @ 3V 30pF
Logic Level - Low: 0．7V ~ 0．8V
Logic Level - High: 0．9V ~ 1．5V
Current - Quiescent (Max): 900nA
