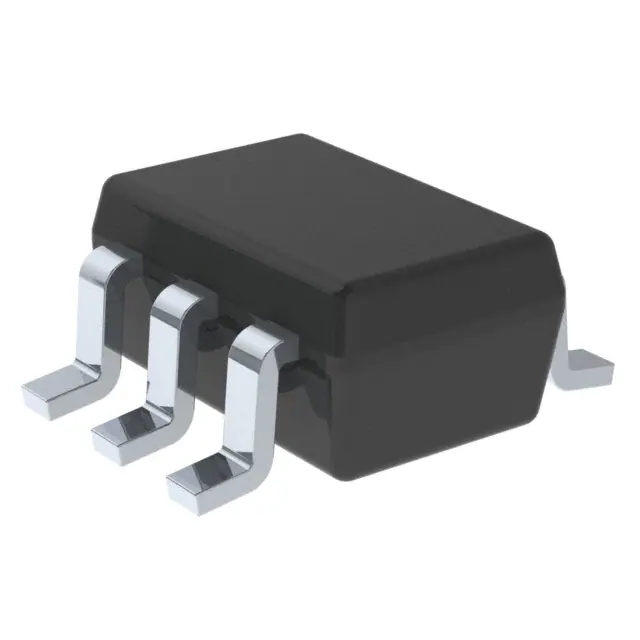

NC7SV86L6X Integrated Circuits (ICs),Logic - Gates and InvertersXOR (Exclusive OR) IC 1 Channel 6-MicroPak

DataSheet

Quantity:

Details Information

Aisa Part#: A19-NC7SV86L6X

Manufacturer Part #: NC7SV86L6X

Product Category: Integrated Circuits (ICs),Logic - Gates and Inverters

Manufacturer: ON Semiconductor

Package Type: 6-UFDFN

CAD Model:

Altium Eagle OrCad PADS KiCad

By downloading CAD models from Asia, you agree to our Terms & Conditions and Privacy Policy.

Specifications

Mfr: ON Semiconductor
Series: 7SV
Package: Tape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part Status: Active
Mounting Type: Surface Mount
Features: -
Operating Temperature: -40°C ~ 85°C
Base Product Number: NC7SV8
Package / Case: 6-UFDFN
Voltage - Supply: 0．9V ~ 3．6V
Supplier Device Package: 6-MicroPak
Logic Type: XOR (Exclusive OR)
Number of Inputs: 2
Current - Output High Low: 24mA 24mA
Number of Circuits: 1
Max Propagation Delay @ V Max CL: 3．3ns @ 3V 30pF
Logic Level - Low: 0．7V ~ 0．8V
Logic Level - High: 1．6V ~ 2V
Current - Quiescent (Max): 900nA

Functional compatible component(2) Form,Package,Functional compatible component(2)

Mfr. Part #	Mfr.	Description	Compare
NC7SV86L6X Logic	Fairchild Semicond	XOR Gate， HC/UH Series， 1-Func， 2-Input， CMOS， 1 MM， MICROPAK-6	NC7SV86L6X vs NC7SV86L6X
NC7SP86L6X Logic	Fairchild Semicond	XOR Gate， HC/UH Series， 1-Func， 2-Input， CMOS， 1 MM， MICROPAK-6	NC7SV86L6X vs NC7SP86L6X
