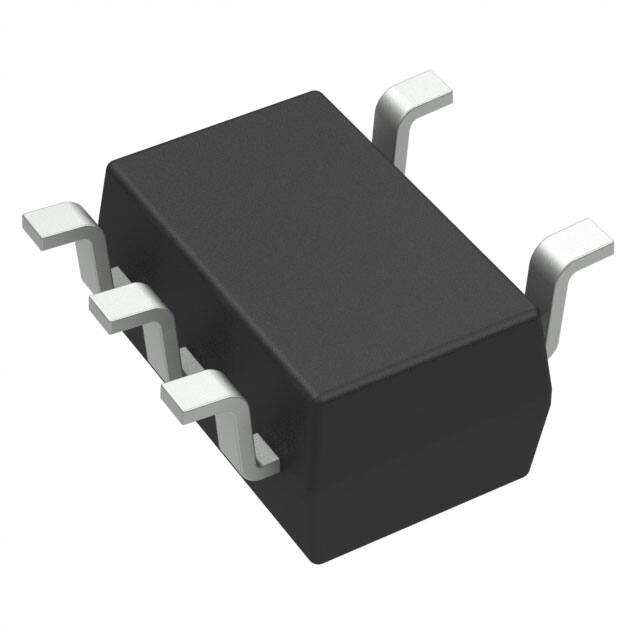

NC7SV02P5X Integrated Circuits (ICs),Logic - Gates and InvertersNOR Gate IC 1 Channel SC-70-5DataSheet
Details Information
Aisa Part#: A19-NC7SV02P5X
Manufacturer Part #: NC7SV02P5X
Product Category: Integrated Circuits (ICs),Logic - Gates and Inverters
Manufacturer: ON Semiconductor
Package Type: 5-TSSOP, SC-70-5, SOT-353
CAD Model:
By downloading CAD models from Asia, you agree to our Terms & Conditions and Privacy Policy.
Specifications
  • Mfr: ON Semiconductor
  • Series: 7SV
  • Package: Tape & Reel (TR)Cut Tape (CT)Digi-Reel®
  • Part Status: Active
  • Mounting Type: Surface Mount
  • Features: -
  • Operating Temperature: -40°C ~ 85°C
  • Base Product Number: NC7SV0
  • Package / Case: 5-TSSOP SC-70-5 SOT-353
  • Voltage - Supply: 0.9V ~ 3.6V
  • Supplier Device Package: SC-70-5
  • Logic Type: NOR Gate
  • Number of Inputs: 2
  • Current - Output High Low: 24mA 24mA
  • Number of Circuits: 1
  • Max Propagation Delay @ V Max CL: 3.3ns @ 3V 30pF
  • Logic Level - Low: 0.7V ~ 0.8V
  • Logic Level - High: 1.6V ~ 2V
  • Current - Quiescent (Max): 900nA
