NC7SV02FHX Integrated Circuits (ICs),Logic - Gates and InvertersNOR Gate IC 1 Channel 6-MicroPak2™
DataSheet
Quantity:
Details Information
Aisa Part#: A19-NC7SV02FHX
Manufacturer Part #: NC7SV02FHX
Product Category: Integrated Circuits (ICs),Logic - Gates and Inverters
Manufacturer: ON Semiconductor
Package Type: 6-UFDFN
CAD Model:
AltiumEagleOrCadPADSKiCad
By downloading CAD models from Asia, you agree to our Terms & Conditions and Privacy Policy.
Specifications
  • Mfr: ON Semiconductor
  • Series: 7SV
  • Package: Tape & Reel (TR)Cut Tape (CT)Digi-Reel®
  • Part Status: Active
  • Mounting Type: Surface Mount
  • Features: -
  • Operating Temperature: -40°C ~ 85°C
  • Base Product Number: NC7SV0
  • Package / Case: 6-UFDFN
  • Voltage - Supply: 0．9V ~ 3．6V
  • Supplier Device Package: 6-MicroPak2™
  • Logic Type: NOR Gate
  • Number of Inputs: 2
  • Current - Output High Low: 24mA 24mA
  • Number of Circuits: 1
  • Max Propagation Delay @ V Max CL: 3．3ns @ 3．3V 30pF
  • Logic Level - Low: 0．7V ~ 0．8V
  • Logic Level - High: 1．6V ~ 2V
  • Current - Quiescent (Max): 900nA
Customers Also Bought
  • NC7SV02L6X ON Semiconductor NOR Gate IC 1 Channel 6-MicroPak

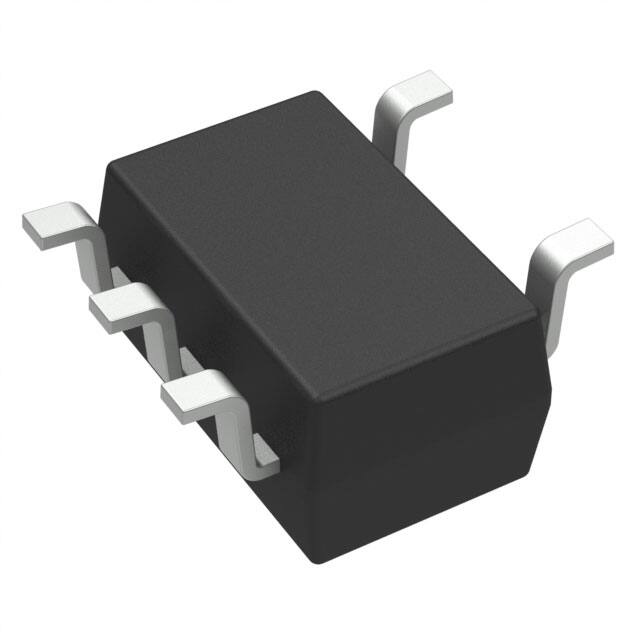

  • NC7SV02P5X ON Semiconductor NOR Gate IC 1 Channel SC-70-5

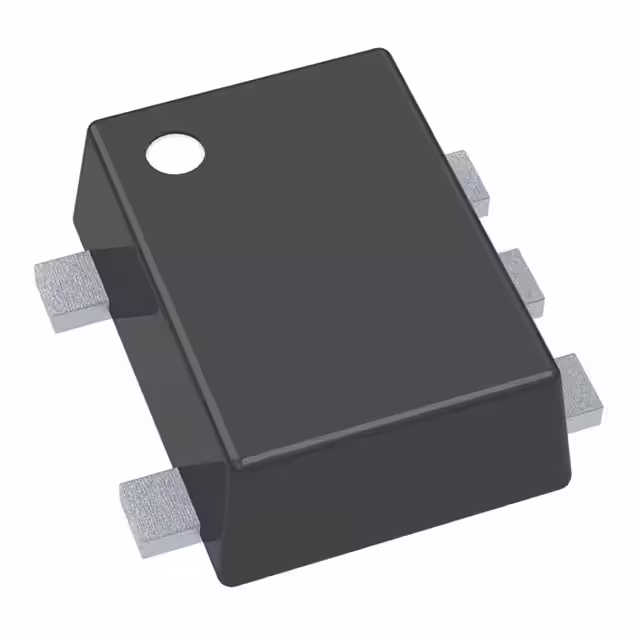

  • NC7SV04FHX ON Semiconductor Inverter IC 1 Channel 6-MicroPak2™

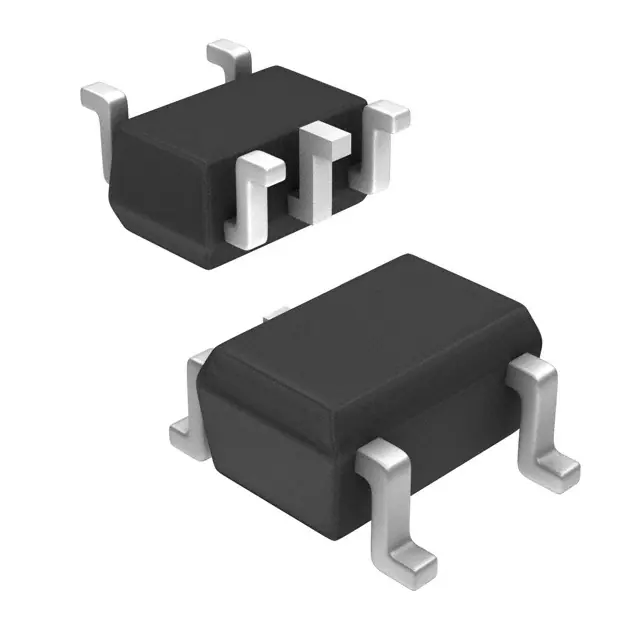

  • NC7SV04L6X ON Semiconductor Inverter IC 1 Channel 6-MicroPak
  • NC7SV04P5X ON Semiconductor Inverter IC 1 Channel SC-70-5

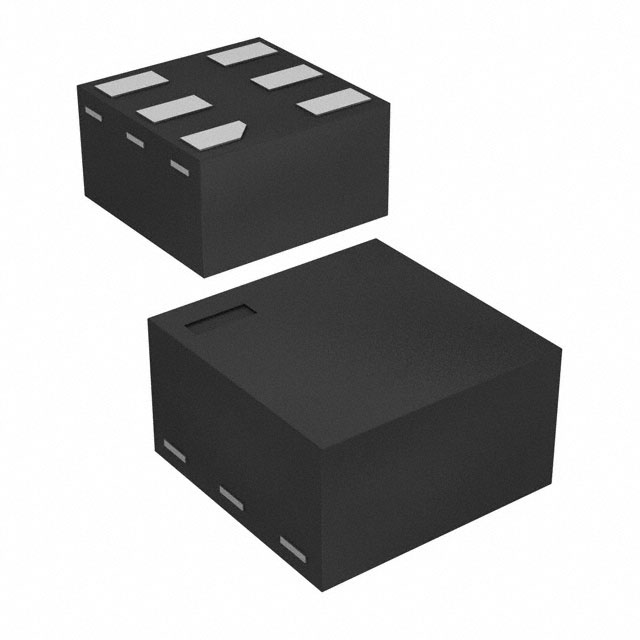

  • NC7SV05FHX ON Semiconductor Inverter IC 1 Channel Open Drain 6-MicroPak2™
  • NC7SV05L6X ON Semiconductor Inverter IC 1 Channel Open Drain 6-MicroPak

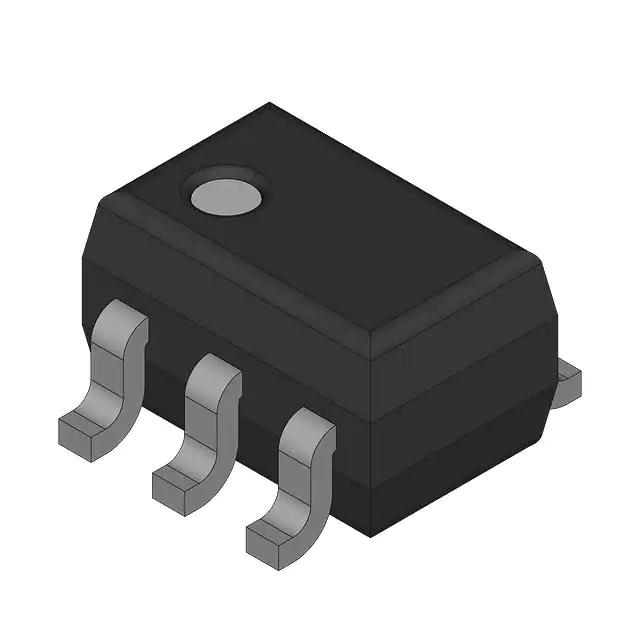

  • NC7SV05P5X ON Semiconductor Inverter IC 1 Channel Open Drain SC-70-5

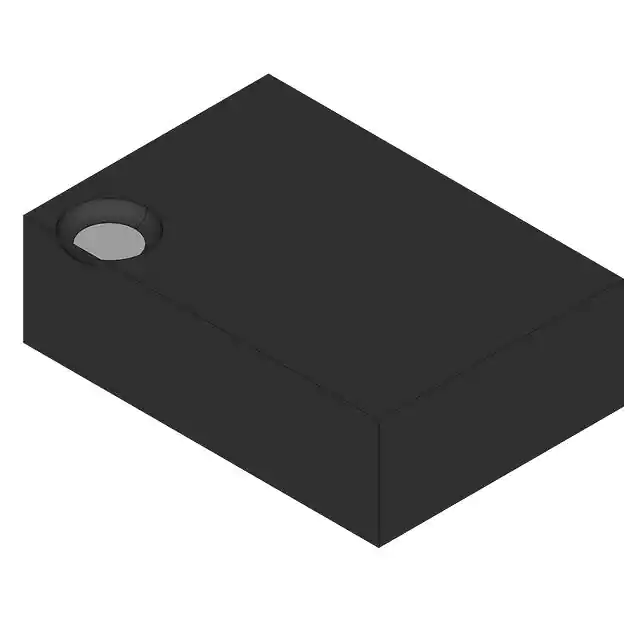

  • NC7SV08FHX ON Semiconductor AND Gate IC 1 Channel 6-MicroPak2™

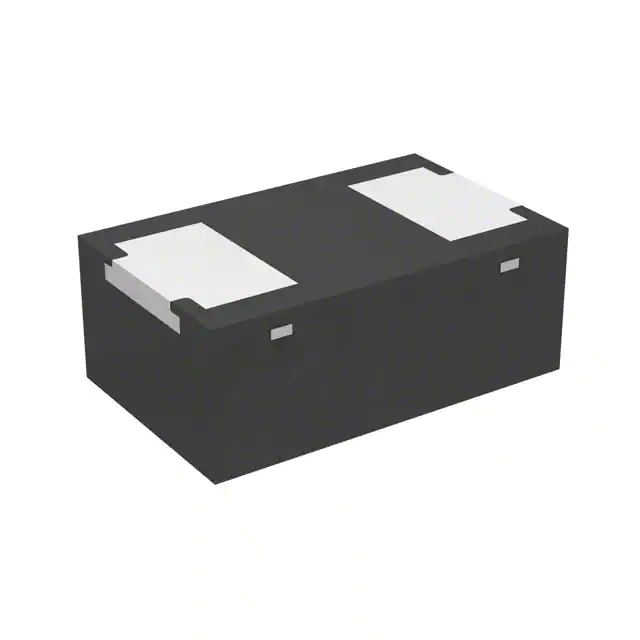

  • NC7SV08L6X ON Semiconductor AND Gate IC 1 Channel 6-MicroPak
