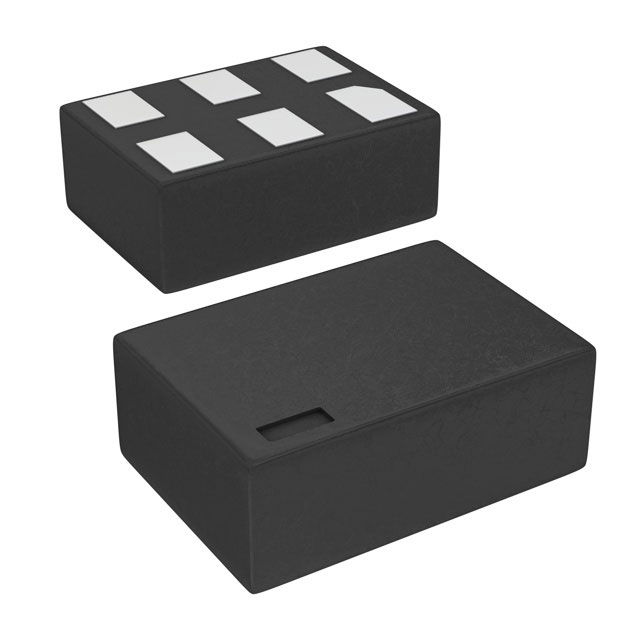

NC7SV00L6X Integrated Circuits (ICs),Logic - Gates and InvertersNAND Gate IC 1 Channel 6-MicroPakDataSheet
Details Information
Aisa Part#: A19-NC7SV00L6X
Manufacturer Part #: NC7SV00L6X
Product Category: Integrated Circuits (ICs),Logic - Gates and Inverters
Manufacturer: ON Semiconductor
Package Type: 6-UFDFN
CAD Model:
By downloading CAD models from Asia, you agree to our Terms & Conditions and Privacy Policy.
Specifications
  • Mfr: ON Semiconductor
  • Series: 7SV
  • Package: Tape & Reel (TR)Cut Tape (CT)Digi-Reel®
  • Part Status: Active
  • Mounting Type: Surface Mount
  • Features: -
  • Operating Temperature: -40°C ~ 85°C
  • Base Product Number: NC7SV0
  • Package / Case: 6-UFDFN
  • Voltage - Supply: 0.9V ~ 3.6V
  • Supplier Device Package: 6-MicroPak
  • Logic Type: NAND Gate
  • Number of Inputs: 2
  • Current - Output High Low: 24mA 24mA
  • Number of Circuits: 1
  • Max Propagation Delay @ V Max CL: 2.3ns @ 3V 30pF
  • Logic Level - Low: 0.7V ~ 0.8V
  • Logic Level - High: 1.6V ~ 2V
  • Current - Quiescent (Max): 900nA
