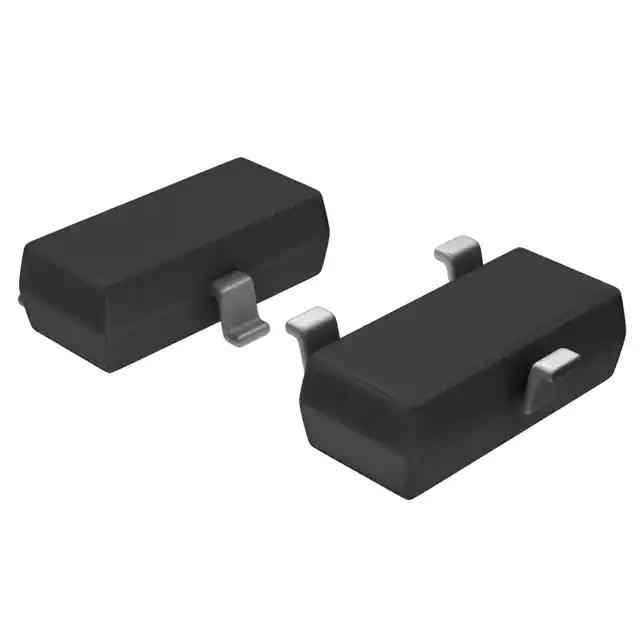

NC7SU04M5X Integrated Circuits (ICs),Logic - Gates and InvertersInverter IC 1 Channel SOT-23-5DataSheet
Details Information
Aisa Part#: A19-NC7SU04M5X
Manufacturer Part #: NC7SU04M5X
Product Category: Integrated Circuits (ICs),Logic - Gates and Inverters
Manufacturer: ON Semiconductor
Package Type: SC-74A, SOT-753
CAD Model:
By downloading CAD models from Asia, you agree to our Terms & Conditions and Privacy Policy.
Specifications
  • Mfr: ON Semiconductor
  • Series: 7SU
  • Package: Tape & Reel (TR)Cut Tape (CT)Digi-Reel®
  • Part Status: Active
  • Mounting Type: Surface Mount
  • Features: -
  • Operating Temperature: -40°C ~ 85°C
  • Base Product Number: NC7SU0
  • Package / Case: SC-74A SOT-753
  • Voltage - Supply: 2V ~ 6V
  • Supplier Device Package: SOT-23-5
  • Logic Type: Inverter
  • Number of Inputs: 1
  • Current - Output High Low: 2.6mA 2.6mA
  • Number of Circuits: 1
  • Max Propagation Delay @ V Max CL: 17ns @ 6V 50pF
  • Logic Level - Low: 0.3V ~ 1.2V
  • Logic Level - High: 1.7V ~ 4.8V
  • Current - Quiescent (Max): 1µA
Functional compatible component(10) Form,Package,Functional compatible component(4)
Mfr. Part # Mfr. Description Compare
TC7SHU04F(TE12L)
Logic
Toshiba America El IC HC/UH SERIES, 1-INPUT INVERT GATE, PDSO5, PLASTIC, SSOP-5, Gate NC7SU04M5X vs TC7SHU04F(TE12L)
NC7SZ04M5X
Logic
Fairchild Semicond Inverter, LVC/LCX/Z Series, 1-Func, 1-Input, CMOS, PDSO5, 1.60 MM, MO-178AA, SOT-23, 5 PIN NC7SU04M5X vs NC7SZ04M5X
NC7S04M5_NL
Logic
Fairchild Semicond Inverter, HC/UH Series, 1-Func, 1-Input, CMOS, PDSO5, 1.60 MM, MO-178AA, SOT-23, 5 PIN NC7SU04M5X vs NC7S04M5_NL
NC7SZU04M5X
Logic
Rochester Electron LVC/LCX/Z SERIES, 1-INPUT INVERT GATE, PDSO5, 1.60 MM, ROHS COMPLIANT, MO-178AA, SOT-23, 5 PIN NC7SU04M5X vs NC7SZU04M5X
NC7SU04M5
Logic
Rochester Electron HC/UH SERIES, 1-INPUT INVERT GATE, PDSO5, 1.60 MM, MO-178, SOT-23, 5 PIN NC7SU04M5X vs NC7SU04M5
TC7S04F(TE12L)
Logic
Toshiba America El IC HC/UH SERIES, 1-INPUT INVERT GATE, PDSO5, PLASTIC, SSOP-5, Gate NC7SU04M5X vs TC7S04F(TE12L)
NC7SZ04M5
Logic
Texas Instruments LVC/LCX/Z SERIES, 1-INPUT INVERT GATE, PDSO5, THERMALLY ENHANCED, PLASTIC, SOT-23, 5 PIN NC7SU04M5X vs NC7SZ04M5
TC7SU04F(TE12L)
Logic
Toshiba America El IC HC/UH SERIES, 1-INPUT INVERT GATE, PDSO5, PLASTIC, SSOP-5, Gate NC7SU04M5X vs TC7SU04F(TE12L)
TC7SZ05F
Logic
Toshiba America El IC LVC/LCX/Z SERIES, 1-INPUT INVERT GATE, PDSO5, 0.95 MM PITCH, PLASTIC, SSOP-5, Gate NC7SU04M5X vs TC7SZ05F
NC7SZ05M5
Logic
Texas Instruments LVC/LCX/Z SERIES, 1-INPUT INVERT GATE, PDSO5, THERMALLY ENHANCED, PLASTIC, SOT-23, 5 PIN NC7SU04M5X vs NC7SZ05M5
