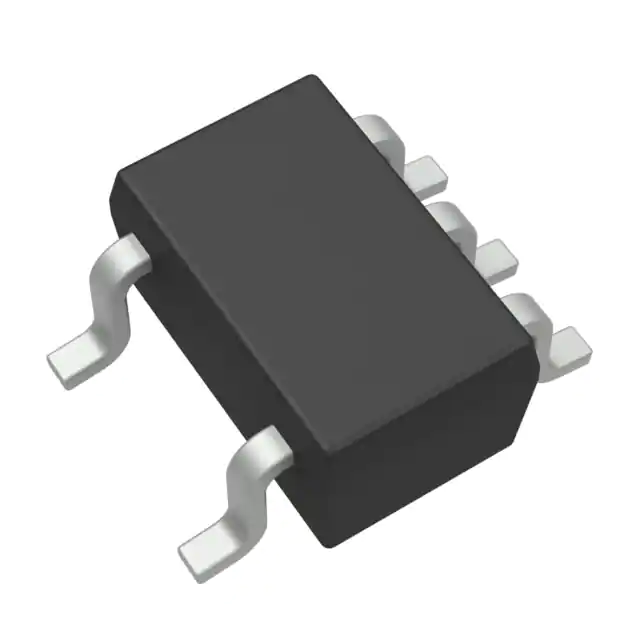

NC7ST04P5 Integrated Circuits (ICs),Logic - Gates and InvertersInverter IC 1 Channel SC-70-5
DataSheet
Quantity:
Details Information
Aisa Part#: A19-NC7ST04P5
Manufacturer Part #: NC7ST04P5
Product Category: Integrated Circuits (ICs),Logic - Gates and Inverters
Manufacturer: ON Semiconductor
Package Type: 5-TSSOP, SC-70-5, SOT-353
CAD Model:
AltiumEagleOrCadPADSKiCad
By downloading CAD models from Asia, you agree to our Terms & Conditions and Privacy Policy.
Specifications
  • Mfr: ON Semiconductor
  • Series: 7ST
  • Package: Tape & Reel (TR)Cut Tape (CT)Digi-Reel®
  • Part Status: Discontinued at Digi-Key
  • Mounting Type: Surface Mount
  • Features: -
  • Operating Temperature: -40°C ~ 85°C
  • Base Product Number: NC7ST0
  • Package / Case: 5-TSSOP SC-70-5 SOT-353
  • Voltage - Supply: 4．5V ~ 5．5V
  • Supplier Device Package: SC-70-5
  • Logic Type: Inverter
  • Number of Inputs: 1
  • Current - Output High Low: 2mA 2mA
  • Number of Circuits: 1
  • Max Propagation Delay @ V Max CL: 26ns @ 5．5V 50pF
  • Logic Level - Low: 0．8V
  • Logic Level - High: 2V
  • Current - Quiescent (Max): 1µA
Functional compatible component(5) Form,Package,Functional compatible component(3)
Mfr. Part # Mfr. Description Compare
NC7ST04P5X
Logic		 Fairchild Semicond Inverter， HST/T Series， 1-Func， 1-Input， CMOS， PDSO5， 1.25 MM， EIAJ， SC-88A， SC-70， 5 PIN NC7ST04P5 vs NC7ST04P5X
NC7ST04P5
Logic		 ON Semiconductor TinyLogic HST Inverter， 250-REEL NC7ST04P5 vs NC7ST04P5
NC7ST04M5X
Logic		 Rochester Electron HST/T SERIES， 1-INPUT INVERT GATE， PDSO5， 1.60 MM， MO-178， SOT-23， 5 PIN NC7ST04P5 vs NC7ST04M5X
NC7ST04P5X_NL
Logic		 Fairchild Semicond Inverter， HST/T Series， 1-Func， 1-Input， CMOS， PDSO5， 1.25 MM， EIAJ， SC-88A， SC-70， 5 PIN NC7ST04P5 vs NC7ST04P5X_NL
NC7ST04M5
Logic		 Fairchild Semicond Inverter， HST/T Series， 1-Func， 1-Input， CMOS， PDSO5， 1.60 MM， MO-178， SOT-23， 5 PIN NC7ST04P5 vs NC7ST04M5
