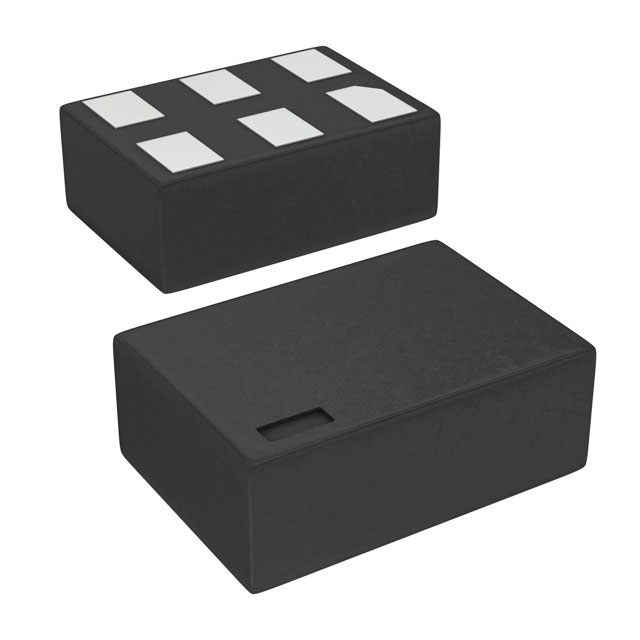

NC7ST04L6X Integrated Circuits (ICs),Logic - Gates and InvertersInverter IC 1 Channel 6-MicroPakDataSheet
Details Information
Aisa Part#: A19-NC7ST04L6X
Manufacturer Part #: NC7ST04L6X
Product Category: Integrated Circuits (ICs),Logic - Gates and Inverters
Manufacturer: ON Semiconductor
Package Type: 6-UFDFN
CAD Model:
By downloading CAD models from Asia, you agree to our Terms & Conditions and Privacy Policy.
Specifications
  • Mfr: ON Semiconductor
  • Series: 7ST
  • Package: Tape & Reel (TR)Cut Tape (CT)Digi-Reel®
  • Part Status: Obsolete
  • Mounting Type: Surface Mount
  • Features: -
  • Operating Temperature: -40°C ~ 85°C
  • Base Product Number: NC7ST0
  • Package / Case: 6-UFDFN
  • Voltage - Supply: 4.5V ~ 5.5V
  • Supplier Device Package: 6-MicroPak
  • Logic Type: Inverter
  • Number of Inputs: 1
  • Current - Output High Low: 2mA 2mA
  • Number of Circuits: 1
  • Max Propagation Delay @ V Max CL: 26ns @ 5.5V 50pF
  • Logic Level - Low: 0.8V
  • Logic Level - High: 2V
  • Current - Quiescent (Max): 1µA
Functional compatible component(9) Form,Package,Functional compatible component(1)
Mfr. Part # Mfr. Description Compare
NC7SV02L6X
Logic
Fairchild Semicond NOR Gate, AUP/ULP/V Series, 1-Func, 2-Input, CMOS, PDSO6, 1 MM, MO-252UAAD, MICROPAK-6 NC7ST04L6X vs NC7SV02L6X
PI74STX2GU04CX
Logic
Pericom Semiconduc Inverter, STX Series, 2-Func, 1-Input, CMOS, PDSO6, SC-70, 6 PIN NC7ST04L6X vs PI74STX2GU04CX
NC7SV11P6X
Logic
Fairchild Semicond AND Gate, HC/UH Series, 1-Func, 3-Input, CMOS, PDSO6, 1.25 MM, SC-88, SC-70, 6 PIN NC7ST04L6X vs NC7SV11P6X
NC7SZ386L6X
Logic
Rochester Electron LVC/LCX/Z SERIES, 3-INPUT XOR GATE, PDSO6, 1 MM, MICROPAK-6 NC7ST04L6X vs NC7SZ386L6X
NC7SV08L6X_NL
Logic
Fairchild Semicond AND Gate, AUP/ULP/V Series, 1-Func, 2-Input, CMOS, 1 MM, LEAD FREE, MICROPAK-6 NC7ST04L6X vs NC7SV08L6X_NL
SN74AUC2G07DBVTG4
Logic
Texas Instruments AUC SERIES, DUAL 1-INPUT NON-INVERT GATE, PDSO6, GREEN, PLASTIC, SOT-23, 6 PIN NC7ST04L6X vs SN74AUC2G07DBVTG4
NC7SV00L6X
Logic
Fairchild Semicond NAND Gate, AUP/ULP/V Series, 1-Func, 2-Input, CMOS, PDSO6, 1 MM, ROHS COMPLIANT, MO-252UAAD, MICROPA NC7ST04L6X vs NC7SV00L6X
NC7SP38L6X
Logic
ON Semiconductor TinyLogic ULP 2-Input NAND Gate (Open Drain Output), 5000-REEL NC7ST04L6X vs NC7SP38L6X
RD74VT1G86CLE
Logic
Renesas Electronic 74V SERIES, 2-INPUT XOR GATE, PBGA6, 0.90 X 1.40 MM, 0.50 MM HEIGHT, FBGA-6 NC7ST04L6X vs RD74VT1G86CLE
Customers Also Bought
  • NC7ST04M5 ON Semiconductor Inverter IC 1 Channel SOT-23-5
  • NC7ST04M5X ON Semiconductor Inverter IC 1 Channel SOT-23-5
  • NC7ST04P5 ON Semiconductor Inverter IC 1 Channel SC-70-5
  • NC7ST04P5X ON Semiconductor Inverter IC 1 Channel SC-70-5
  • NC7ST08L6X ON Semiconductor IC Channel

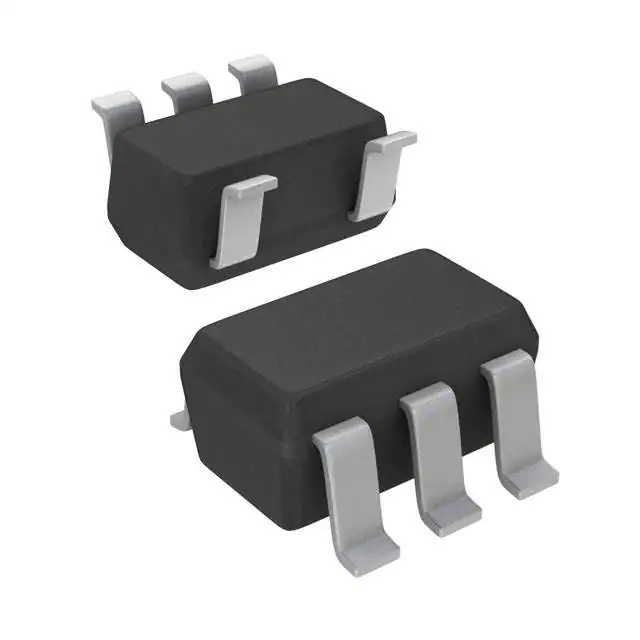

  • NC7ST08M5 ON Semiconductor AND Gate IC 1 Channel SOT-23-5
