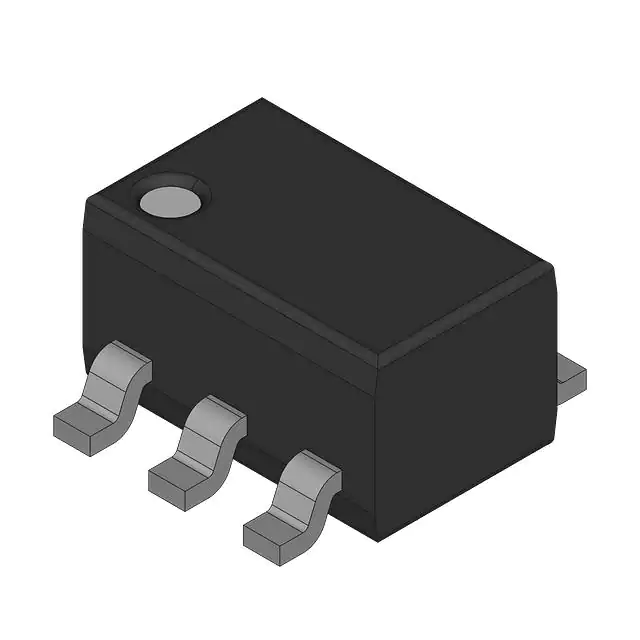

NC7SP58P6X Integrated Circuits (ICs),Logic - Gates and Inverters - Multi-Function, ConfigurableConfigurable Multiple Function Configurable 1 Circuit 3 Input SC-88 (SC-70-6)

DataSheet

Quantity:

Details Information

Aisa Part#: A19-NC7SP58P6X

Manufacturer Part #: NC7SP58P6X

Product Category: Integrated Circuits (ICs),Logic - Gates and Inverters - Multi-Function, Configurable

Manufacturer: ON Semiconductor

Package Type: 6-TSSOP, SC-88, SOT-363

CAD Model:

Altium Eagle OrCad PADS KiCad

By downloading CAD models from Asia, you agree to our Terms & Conditions and Privacy Policy.

Specifications

Mfr: ON Semiconductor
Series: *
Series: 7SP
Package: Bulk
Package: Tape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part Status: Active
Mounting Type: Surface Mount
Operating Temperature: -40°C ~ 85°C
Base Product Number: NC7SP5
Package / Case: 6-TSSOP SC-88 SOT-363
Output Type: Single-Ended
Voltage - Supply: 0．9V ~ 3．6V
Supplier Device Package: SC-88 (SC-70-6)
Logic Type: Configurable Multiple Function
Number of Inputs: 3
Schmitt Trigger Input: No
Current - Output High Low: 2．6mA 2．6mA
Number of Circuits: 1
