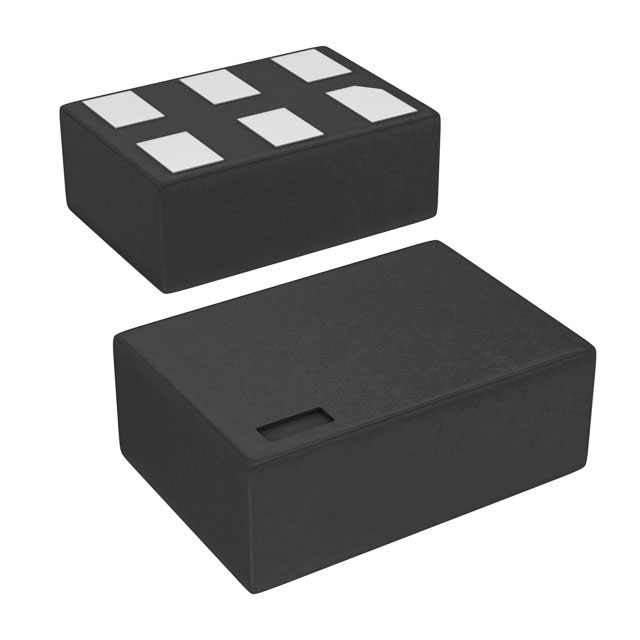

NC7SP57L6X Integrated Circuits (ICs),Logic - Gates and Inverters - Multi-Function, ConfigurableConfigurable Multiple Function Configurable 1 Circuit 3 Input 6-MicroPak

DataSheet

Quantity:

Details Information

Aisa Part#: A19-NC7SP57L6X

Manufacturer Part #: NC7SP57L6X

Product Category: Integrated Circuits (ICs),Logic - Gates and Inverters - Multi-Function, Configurable

Manufacturer: ON Semiconductor

Package Type: 6-UFDFN

CAD Model:

Altium Eagle OrCad PADS KiCad

By downloading CAD models from Asia, you agree to our Terms & Conditions and Privacy Policy.

Specifications

Mfr: ON Semiconductor
Series: 7SP
Package: Tape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part Status: Active
Mounting Type: Surface Mount
Operating Temperature: -40°C ~ 85°C
Base Product Number: NC7SP5
Package / Case: 6-UFDFN
Output Type: Single-Ended
Voltage - Supply: 0．9V ~ 3．6V
Supplier Device Package: 6-MicroPak
Logic Type: Configurable Multiple Function
Number of Inputs: 3
Schmitt Trigger Input: No
Current - Output High Low: 2．6mA 2．6mA
Number of Circuits: 1

Form,Package,Functional compatible component(1)

Mfr. Part #	Mfr.	Description	Compare
NC7SP57L6X Logic	Fairchild Semicond	TinyLogic ULP Universal Configurable 2-Input Logic Gates， 6LD， MICROPAK， JEDEC MO-252，1.0MM WIDE (Lo	NC7SP57L6X vs NC7SP57L6X
