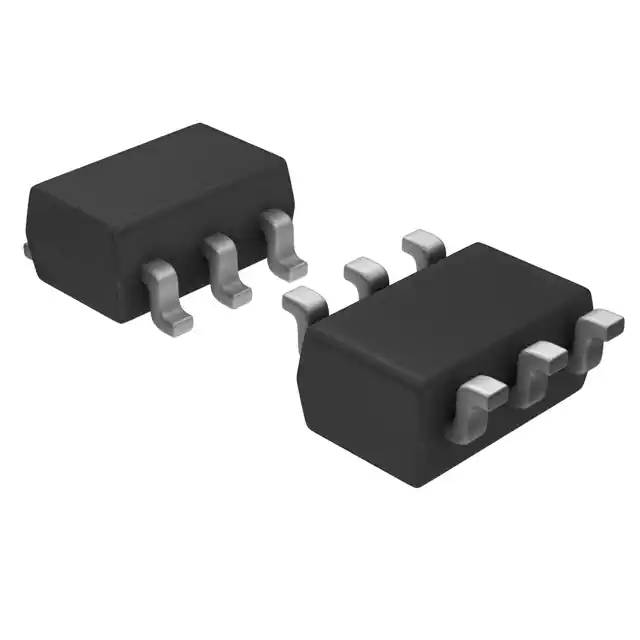

NC7SP38P5X Integrated Circuits (ICs),Logic - Gates and InvertersNAND Gate IC 1 Channel Open Drain SC-70-5DataSheet
Details Information
Aisa Part#: A19-NC7SP38P5X
Manufacturer Part #: NC7SP38P5X
Product Category: Integrated Circuits (ICs),Logic - Gates and Inverters
Manufacturer: ON Semiconductor
Package Type: 5-TSSOP, SC-70-5, SOT-353
CAD Model:
By downloading CAD models from Asia, you agree to our Terms & Conditions and Privacy Policy.
Specifications
  • Mfr: ON Semiconductor
  • Series: 7SP
  • Package: Tape & Reel (TR)Tape & Reel (TR)Cut Tape (CT)Digi-Reel®
  • Part Status: Active
  • Mounting Type: Surface Mount
  • Features: Open Drain
  • Operating Temperature: -40°C ~ 85°C
  • Base Product Number: NC7SP3
  • Package / Case: 5-TSSOP SC-70-5 SOT-353
  • Voltage - Supply: 0.9V ~ 3.6V
  • Supplier Device Package: SC-70-5
  • Logic Type: NAND Gate
  • Number of Inputs: 2
  • Current - Output High Low: - 2.6mA
  • Number of Circuits: 1
  • Max Propagation Delay @ V Max CL: 10ns @ 3.3V 30pF
  • Logic Level - Low: 0.7V ~ 0.9V
  • Logic Level - High: 1.6V ~ 2.1V
  • Current - Quiescent (Max): 900nA
Functional compatible component(10)
Mfr. Part # Mfr. Description Compare
NC7ST32M5X
Logic
ON Semiconductor TinyLogic HST 2-Input OR Gate, 3000-REEL NC7SP38P5X vs NC7ST32M5X
74HC1GU04GV,125
Logic
NXP Semiconductors 74HC1GU04 - Inverter TSOP 5-Pin NC7SP38P5X vs 74HC1GU04GV,125
74HCT1G32GV
Logic
Nexperia OR Gate NC7SP38P5X vs 74HCT1G32GV
935271787125
Logic
Nexperia Inverter, HC/UH Series, 1-Func, 1-Input, CMOS, PDSO5 NC7SP38P5X vs 935271787125
74AUP1G04GW
Logic
Philips Semiconduc Inverter, CMOS, PDSO5 NC7SP38P5X vs 74AUP1G04GW
74HC1GU04GW
Logic
NXP Semiconductors IC HC/UH SERIES, 1-INPUT INVERT GATE, PDSO5, 1.25 MM, PLASTIC, MO-203, SC-88A, SOT-353-1, TSSOP-5, G NC7SP38P5X vs 74HC1GU04GW
74AUP1G86GW,125
Logic
NXP Semiconductors 74AUP1G86 - Low-power 2-input EXCLUSIVE-OR gate TSSOP 5-Pin NC7SP38P5X vs 74AUP1G86GW,125
74LX1G132STR
Logic
STMicroelectronics TTL/H/L SERIES, 2-INPUT NAND GATE, PDSO5, SOT-23, 5 PIN NC7SP38P5X vs 74LX1G132STR
TC7SZU04AFETE85L
Logic
Toshiba America El IC HC/UH SERIES, 1-INPUT INVERT GATE, PDSO5, 0.50 MM PITCH, PLASTIC, SON-5, Gate NC7SP38P5X vs TC7SZU04AFETE85L
NC7SZ00CW
Logic
Fairchild Semicond NAND Gate, LVC/LCX/Z Series, 1-Func, 2-Input, CMOS NC7SP38P5X vs NC7SZ00CW
