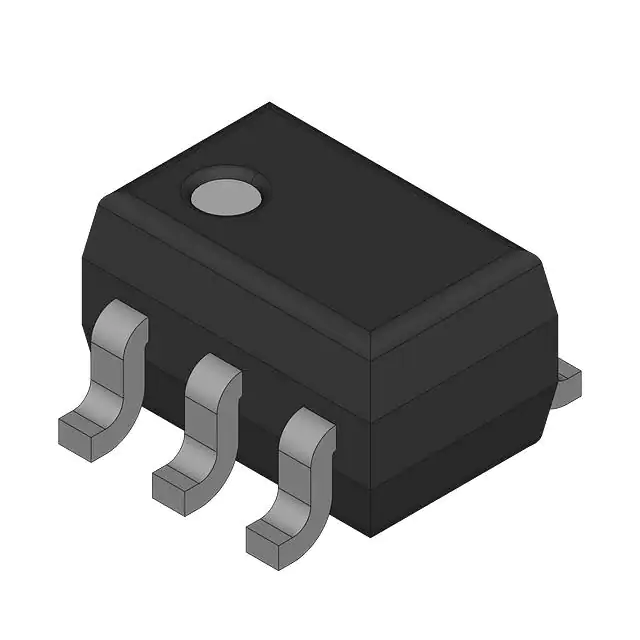

NC7SP32P5X Integrated Circuits (ICs),Logic - Gates and InvertersOR Gate IC 1 Channel SC-70-5

DataSheet

Quantity:

Details Information

Aisa Part#: A19-NC7SP32P5X

Manufacturer Part #: NC7SP32P5X

Product Category: Integrated Circuits (ICs),Logic - Gates and Inverters

Manufacturer: ON Semiconductor

Package Type: 5-TSSOP, SC-70-5, SOT-353

CAD Model:

Altium Eagle OrCad PADS KiCad

By downloading CAD models from Asia, you agree to our Terms & Conditions and Privacy Policy.

Specifications

Mfr: ON Semiconductor
Series: 7SP
Package: Tape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part Status: Active
Mounting Type: Surface Mount
Features: -
Operating Temperature: -40°C ~ 85°C
Base Product Number: NC7SP3
Package / Case: 5-TSSOP SC-70-5 SOT-353
Voltage - Supply: 0．9V ~ 3．6V
Supplier Device Package: SC-70-5
Logic Type: OR Gate
Number of Inputs: 2
Current - Output High Low: 2．6mA 2．6mA
Number of Circuits: 1
Max Propagation Delay @ V Max CL: 7ns @ 3．3V 30pF
Logic Level - Low: 0．7V ~ 0．9V
Logic Level - High: 1．6V ~ 2．1V
Current - Quiescent (Max): 900nA

Functional compatible component(10) Form,Package,Functional compatible component(10)

Mfr. Part #	Mfr.	Description	Compare
SN74AUP1G32DCKR Logic	Texas Instruments	Low-Power Single 2-Input Positive-OR Gate 5-SC70 -40 to 85	NC7SP32P5X vs SN74AUP1G32DCKR
SN74AUP1G32DCKTE4 Logic	Texas Instruments	Low-Power Single 2-Input Positive-OR Gate 5-SC70 -40 to 85	NC7SP32P5X vs SN74AUP1G32DCKTE4
74AUP1G32GW Logic	NXP Semiconductors	IC AUP/ULP/V SERIES， 2-INPUT OR GATE， PDSO5， 1.25 MM， PLASTIC， MO-203， SC-88A， SOT353-1， TSSOP-5， Ga	NC7SP32P5X vs 74AUP1G32GW
74AUP1G32GW，125 Logic	NXP Semiconductors	74AUP1G32 - Low-power 2-input OR-gate TSSOP 5-Pin	NC7SP32P5X vs 74AUP1G32GW，125
74AUP1G32GW/DG，125 Logic	NXP Semiconductors	IC AUP/ULP/V SERIES， 2-INPUT OR GATE， PDSO5， 1.25 MM， PLASTIC， MO-203， SC-88A， SOT-353-1， TSSOP-5， G	NC7SP32P5X vs 74AUP1G32GW/DG，125
NC7SP32P5X Logic	Fairchild Semicond	OR Gate， HC/UH Series， 1-Func， 2-Input， CMOS， PDSO5， 1.25 MM， SC-88A， SC-70， 5 PIN	NC7SP32P5X vs NC7SP32P5X
TC7SL32FU Logic	Toshiba America El	IC HC/UH SERIES， 2-INPUT OR GATE， PDSO5， 0.65 MM PITCH， PLASTIC， SSOP-5， Gate	NC7SP32P5X vs TC7SL32FU
TC7SL32FU(TE12L) Logic	Toshiba America El	IC HC/UH SERIES， 2-INPUT OR GATE， PDSO5， PLASTIC， SSOP-5， Gate	NC7SP32P5X vs TC7SL32FU(TE12L)
SN74AUP1G32DCKRG4 Logic	Texas Instruments	AUP/ULP/V SERIES， 2-INPUT OR GATE， PDSO5， GREEN， PLASTIC， SC-70， 5 PIN	NC7SP32P5X vs SN74AUP1G32DCKRG4
SN74AUP1G32DCKTG4 Logic	Texas Instruments	AUP/ULP/V SERIES， 2-INPUT OR GATE， PDSO5， GREEN， PLASTIC， SC-70， 5 PIN	NC7SP32P5X vs SN74AUP1G32DCKTG4

Mfr. Part #	Mfr.	Description	Compare
74AUP1G32GW，125 Logic	NXP Semiconductors	74AUP1G32 - Low-power 2-input OR-gate TSSOP 5-Pin	NC7SP32P5X vs 74AUP1G32GW，125
74AUP1G32GW Logic	NXP Semiconductors	IC AUP/ULP/V SERIES， 2-INPUT OR GATE， PDSO5， 1.25 MM， PLASTIC， MO-203， SC-88A， SOT353-1， TSSOP-5， Ga	NC7SP32P5X vs 74AUP1G32GW
74AUP1G32GW/DG，125 Logic	NXP Semiconductors	IC AUP/ULP/V SERIES， 2-INPUT OR GATE， PDSO5， 1.25 MM， PLASTIC， MO-203， SC-88A， SOT-353-1， TSSOP-5， G	NC7SP32P5X vs 74AUP1G32GW/DG，125
SN74AUP1G32DCKRG4 Logic	Texas Instruments	AUP/ULP/V SERIES， 2-INPUT OR GATE， PDSO5， GREEN， PLASTIC， SC-70， 5 PIN	NC7SP32P5X vs SN74AUP1G32DCKRG4
NC7SP32P5X Logic	Fairchild Semicond	OR Gate， HC/UH Series， 1-Func， 2-Input， CMOS， PDSO5， 1.25 MM， SC-88A， SC-70， 5 PIN	NC7SP32P5X vs NC7SP32P5X
TC7SL32FU Logic	Toshiba America El	IC HC/UH SERIES， 2-INPUT OR GATE， PDSO5， 0.65 MM PITCH， PLASTIC， SSOP-5， Gate	NC7SP32P5X vs TC7SL32FU
TC7SL32FU(TE12L) Logic	Toshiba America El	IC HC/UH SERIES， 2-INPUT OR GATE， PDSO5， PLASTIC， SSOP-5， Gate	NC7SP32P5X vs TC7SL32FU(TE12L)
SN74AUP1G32DCKTE4 Logic	Texas Instruments	Low-Power Single 2-Input Positive-OR Gate 5-SC70 -40 to 85	NC7SP32P5X vs SN74AUP1G32DCKTE4
SN74AUP1G32DCKTG4 Logic	Texas Instruments	AUP/ULP/V SERIES， 2-INPUT OR GATE， PDSO5， GREEN， PLASTIC， SC-70， 5 PIN	NC7SP32P5X vs SN74AUP1G32DCKTG4
SN74AUP1G32DCKR Logic	Texas Instruments	Low-Power Single 2-Input Positive-OR Gate 5-SC70 -40 to 85	NC7SP32P5X vs SN74AUP1G32DCKR
