Home > Integrated Circuits (ICs) > Logic - Buffers, Drivers, Receivers, Transceivers > NC7SP126FHX

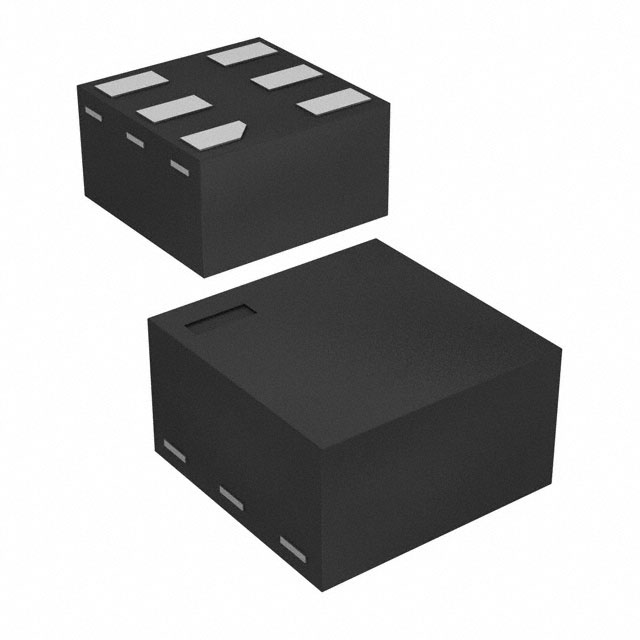

NC7SP126FHX Integrated Circuits (ICs),Logic - Buffers, Drivers, Receivers, TransceiversBuffer, Non-Inverting 1 Element 1 Bit per Element 3-State Output 6-MicroPak2™

DataSheet

Quantity:

Details Information

Aisa Part#: A19-NC7SP126FHX

Manufacturer Part #: NC7SP126FHX

Product Category: Integrated Circuits (ICs),Logic - Buffers, Drivers, Receivers, Transceivers

Manufacturer: ON Semiconductor

Package Type: 6-UFDFN

CAD Model:

Altium Eagle OrCad PADS KiCad

By downloading CAD models from Asia, you agree to our Terms & Conditions and Privacy Policy.

Specifications

Mfr: ON Semiconductor
Series: 7SP
Package: Tape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part Status: Active
Mounting Type: Surface Mount
Operating Temperature: -40°C ~ 85°C (TA)
Base Product Number: NC7SP1
Package / Case: 6-UFDFN
Output Type: 3-State
Voltage - Supply: 0．9V ~ 3．6V
Supplier Device Package: 6-MicroPak2™
Logic Type: Buffer Non-Inverting
Current - Output High Low: 2．6mA 2．6mA
Number of Elements: 1
Number of Bits per Element: 1
Input Type: -

Parts With Similar Specs The following parts have similar specifications to integrated device technology

This Part

Authorized Distributors:6

Max Supply Voltage:3.6 V

Min Supply Voltage:900 mV

Number of Circuits:-

Number of Pins:2

Price @ 1,000:USD 0.213
