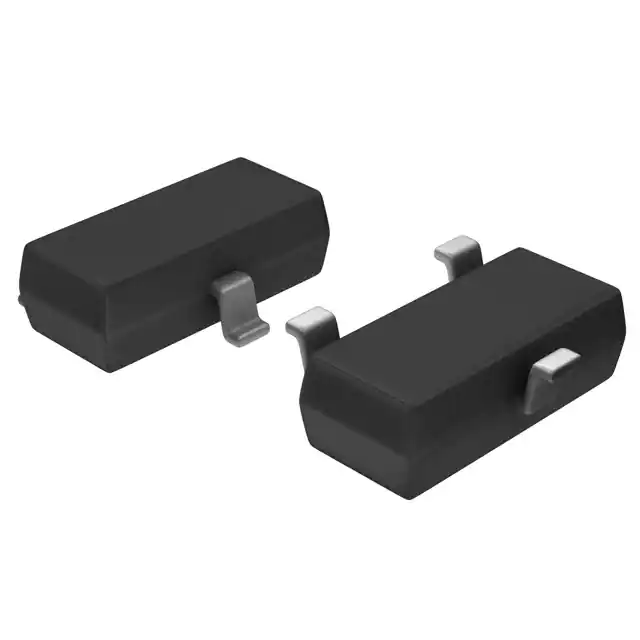

NC7SP02P5X Integrated Circuits (ICs),Logic - Gates and InvertersNOR Gate IC 1 Channel SC-70-5DataSheet
Details Information
Aisa Part#: A19-NC7SP02P5X
Manufacturer Part #: NC7SP02P5X
Product Category: Integrated Circuits (ICs),Logic - Gates and Inverters
Manufacturer: ON Semiconductor
Package Type: 5-TSSOP, SC-70-5, SOT-353
CAD Model:
By downloading CAD models from Asia, you agree to our Terms & Conditions and Privacy Policy.
Specifications
  • Mfr: ON Semiconductor
  • Series: 7SP
  • Package: Tape & Reel (TR)Tape & Reel (TR)Cut Tape (CT)Digi-Reel®
  • Part Status: Active
  • Mounting Type: Surface Mount
  • Features: -
  • Operating Temperature: -40°C ~ 85°C
  • Base Product Number: NC7SP0
  • Package / Case: 5-TSSOP SC-70-5 SOT-353
  • Voltage - Supply: 0.9V ~ 3.6V
  • Supplier Device Package: SC-70-5
  • Logic Type: NOR Gate
  • Number of Inputs: 2
  • Current - Output High Low: 2.6mA 2.6mA
  • Number of Circuits: 1
  • Max Propagation Delay @ V Max CL: 7ns @ 3.3V 30pF
  • Logic Level - Low: 0.7V ~ 0.9V
  • Logic Level - High: 1.6V ~ 2.1V
  • Current - Quiescent (Max): 900nA
Functional compatible component(10) Form,Package,Functional compatible component(10)
Mfr. Part # Mfr. Description Compare
TC7SL02FU(TE85L)
Logic
Toshiba America El IC HC/UH SERIES, 2-INPUT NOR GATE, PDSO5, PLASTIC, SSOP-5, Gate NC7SP02P5X vs TC7SL02FU(TE85L)
TC7SL02FU
Logic
Toshiba America El IC HC/UH SERIES, 2-INPUT NOR GATE, PDSO5, 0.65 MM PITCH, PLASTIC, SSOP-5, Gate NC7SP02P5X vs TC7SL02FU
74AUP1G02GW
Logic
Philips Semiconduc NOR Gate, CMOS, PDSO5 NC7SP02P5X vs 74AUP1G02GW
SN74AUP1G02DCKRE4
Logic
Texas Instruments AUP/ULP/V SERIES, 2-INPUT NOR GATE, PDSO5, GREEN, PLASTIC, SC-70, 5 PIN NC7SP02P5X vs SN74AUP1G02DCKRE4
SN74AUP1G02DCKTG4
Logic
Texas Instruments AUP/ULP/V SERIES, 2-INPUT NOR GATE, PDSO5, GREEN, PLASTIC, SC-70, 5 PIN NC7SP02P5X vs SN74AUP1G02DCKTG4
TC7SL02FU(TE12L)
Logic
Toshiba America El IC HC/UH SERIES, 2-INPUT NOR GATE, PDSO5, PLASTIC, SSOP-5, Gate NC7SP02P5X vs TC7SL02FU(TE12L)
74AUP1G02GW,125
Logic
Nexperia 74AUP1G02 - Low-power 2-input NOR gate TSSOP 5-Pin NC7SP02P5X vs 74AUP1G02GW,125
SN74AUP1G02DCKRG4
Logic
Texas Instruments AUP/ULP/V SERIES, 2-INPUT NOR GATE, PDSO5, GREEN, PLASTIC, SC-70, 5 PIN NC7SP02P5X vs SN74AUP1G02DCKRG4
SN74AUP1G02DCKTE4
Logic
Texas Instruments AUP/ULP/V SERIES, 2-INPUT NOR GATE, PDSO5, GREEN, PLASTIC, SC-70, 5 PIN NC7SP02P5X vs SN74AUP1G02DCKTE4
SN74AUP1G02DCKT
Logic
Texas Instruments Low-Power Single 2-Input Positive-NOR Gate 5-SC70 -40 to 85 NC7SP02P5X vs SN74AUP1G02DCKT
