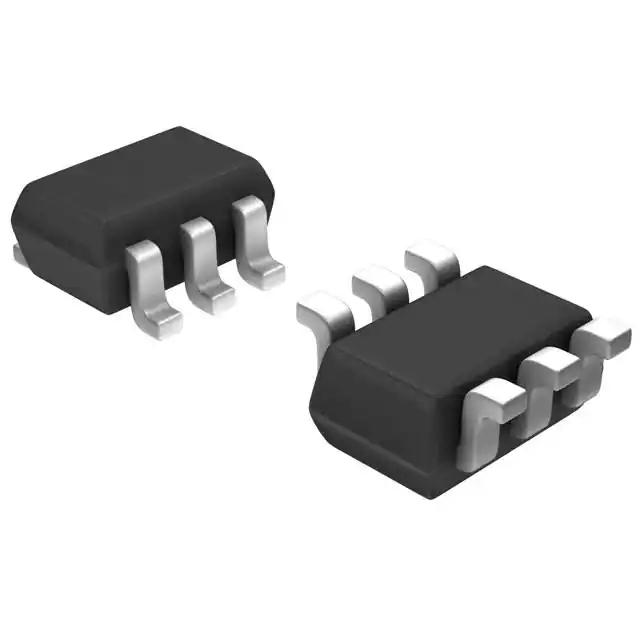

NC7SB3157P6X-F080 Integrated Circuits (ICs),Interface - Analog Switches, Multiplexers, Demultiplexers1 Circuit IC Switch 2:1 15Ohm SC-88 (SC-70-6)
DataSheet
Quantity:
Details Information
Aisa Part#: A19-NC7SB3157P6X-F080
Manufacturer Part #: NC7SB3157P6X-F080
Product Category: Integrated Circuits (ICs),Interface - Analog Switches, Multiplexers, Demultiplexers
Manufacturer: ON Semiconductor
Package Type: 6-TSSOP, SC-88, SOT-363
CAD Model:
AltiumEagleOrCadPADSKiCad
By downloading CAD models from Asia, you agree to our Terms & Conditions and Privacy Policy.
Specifications
  • Mfr: ON Semiconductor
  • Series: -
  • Package: Tape & Reel (TR)Cut Tape (CT)Digi-Reel®
  • Part Status: Obsolete
  • Mounting Type: Surface Mount
  • Operating Temperature: -40°C ~ 85°C (TA)
  • Base Product Number: NC7SB3
  • Package / Case: 6-TSSOP SC-88 SOT-363
  • Supplier Device Package: SC-88 (SC-70-6)
  • Number of Circuits: 1
  • Switch Circuit: SPDT
  • Multiplexer/Demultiplexer Circuit: 2
  • On-State Resistance (Max): 15Ohm
  • Channel-to-Channel Matching (ΔRon): 150mOhm
  • Voltage - Supply Single (V+): 1．65V ~ 5．5V
  • Voltage - Supply Dual (V±): -
  • Switch Time (Ton Toff) (Max): 5．2ns 3．5ns
  • -3db Bandwidth: 250MHz
  • Charge Injection: 7pC
  • Channel Capacitance (CS(off) CD(off)): 6．5pF
  • Current - Leakage (IS(off)) (Max): 100nA
  • Crosstalk: -54dB @ 10MHz
