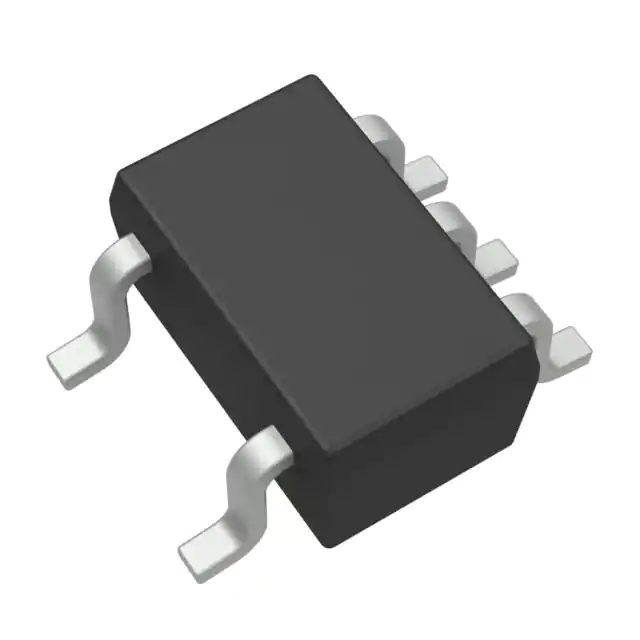

NC7S14P5 Integrated Circuits (ICs),Logic - Gates and InvertersInverter IC 1 Channel Schmitt Trigger SC-70-5DataSheet
Details Information
Aisa Part#: A19-NC7S14P5
Manufacturer Part #: NC7S14P5
Product Category: Integrated Circuits (ICs),Logic - Gates and Inverters
Manufacturer: ON Semiconductor
Package Type: 5-TSSOP, SC-70-5, SOT-353
CAD Model:
By downloading CAD models from Asia, you agree to our Terms & Conditions and Privacy Policy.
Specifications
  • Mfr: ON Semiconductor
  • Series: 7S
  • Package: Tape & Reel (TR)Cut Tape (CT)Digi-Reel®
  • Part Status: Discontinued at Digi-Key
  • Mounting Type: Surface Mount
  • Features: Schmitt Trigger
  • Operating Temperature: -40°C ~ 85°C
  • Base Product Number: NC7S14
  • Package / Case: 5-TSSOP SC-70-5 SOT-353
  • Voltage - Supply: 2V ~ 6V
  • Supplier Device Package: SC-70-5
  • Logic Type: Inverter
  • Number of Inputs: 1
  • Current - Output High Low: 2.6mA 2.6mA
  • Number of Circuits: 1
  • Max Propagation Delay @ V Max CL: 17ns @ 6V 50pF
  • Logic Level - Low: 0.3V ~ 1.5V
  • Logic Level - High: 1.5V ~ 4.2V
  • Current - Quiescent (Max): 1µA
Functional compatible component(10) Form,Package,Functional compatible component(10)
Mfr. Part # Mfr. Description Compare
MC74HC1G14DFT2G
Logic
Rochester Electron HC/UH SERIES, 1-INPUT INVERT GATE, PDSO5, LEAD FREE, SC-70, SC-88A, SOT-353, 5 PIN NC7S14P5 vs MC74HC1G14DFT2G
74HC1G14GW,165
Logic
Nexperia 74HC(T)1G14 - Inverting Schmitt trigger TSSOP 5-Pin NC7S14P5 vs 74HC1G14GW,165
TC7S14FU(TE12L)
Logic
Toshiba America El IC HC/UH SERIES, 1-INPUT INVERT GATE, PDSO5, PLASTIC, SSOP-5, Gate NC7S14P5 vs TC7S14FU(TE12L)
935245730165
Logic
NXP Semiconductors IC HC/UH SERIES, 1-INPUT INVERT GATE, PDSO5, PLASTIC, SC-88A, 5 PIN, Gate NC7S14P5 vs 935245730165
74HC1G14GW-Q100H
Logic
Nexperia 74HC(T)1G14-Q100 - Inverting Schmitt trigger TSSOP 5-Pin NC7S14P5 vs 74HC1G14GW-Q100H
HD74HC1G14CME-E
Logic
Renesas Electronic HC/UH SERIES, 1-INPUT INVERT GATE, PDSO5, CMPAK-5 NC7S14P5 vs HD74HC1G14CME-E
74HC1G14GW
Logic
Nexperia Inverter, HC/UH Series, 1-Func, 1-Input, CMOS, PDSO5 NC7S14P5 vs 74HC1G14GW
HD74HC1G14-EL
Logic
Renesas Electronic HC/UH SERIES, 1-INPUT INVERT GATE, PDSO5, CMPAK-5 NC7S14P5 vs HD74HC1G14-EL
MC74HC1G14DFT2
Logic
ON Semiconductor HC/UH SERIES, 1-INPUT INVERT GATE, PDSO5, SC-70, SC-88A, SOT-353, 5 PIN NC7S14P5 vs MC74HC1G14DFT2
HD74HC1G14CME
Logic
Renesas Electronic HC/UH SERIES, 1-INPUT INVERT GATE, PDSO5, CMPAK-5 NC7S14P5 vs HD74HC1G14CME
