Home > Integrated Circuits (ICs) > Logic - Gates and Inverters > NC7S04P5X_F40

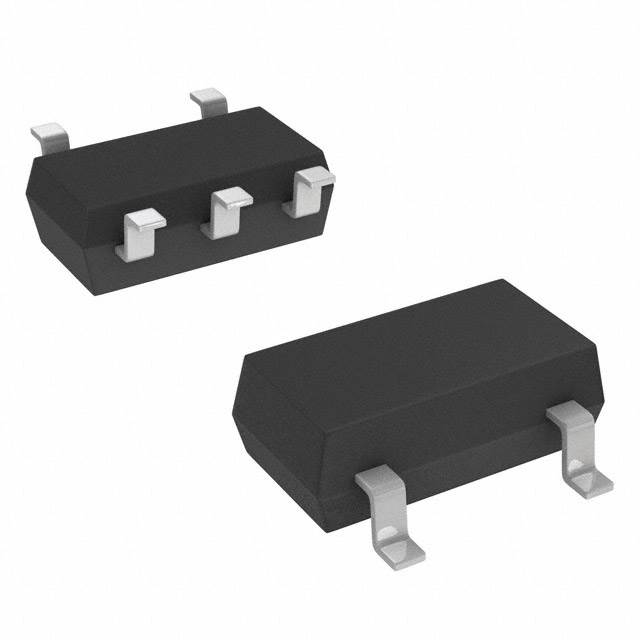

NC7S04P5X_F40 Integrated Circuits (ICs),Logic - Gates and InvertersInverter IC 1 Channel
DataSheet
Quantity:
Details Information
Aisa Part#: A19-NC7S04P5X_F40
Manufacturer Part #: NC7S04P5X_F40
Product Category: Integrated Circuits (ICs),Logic - Gates and Inverters
Manufacturer: ON Semiconductor
Package Type:
CAD Model:
AltiumEagleOrCadPADSKiCad
By downloading CAD models from Asia, you agree to our Terms & Conditions and Privacy Policy.
Specifications
  • Mfr: ON Semiconductor
  • Series: 7S
  • Package: Bulk
  • Part Status: Obsolete
  • Features: -
  • Operating Temperature: -40°C ~ 85°C
  • Base Product Number: NC7S04
  • Voltage - Supply: 2V ~ 6V
  • Logic Type: Inverter
  • Number of Inputs: 1
  • Current - Output High Low: 2．6mA 2．6mA
  • Number of Circuits: 1
  • Max Propagation Delay @ V Max CL: 17ns @ 6V 50pF
  • Logic Level - Low: 0．5V
  • Logic Level - High: 1．5V
  • Current - Quiescent (Max): 1µA
