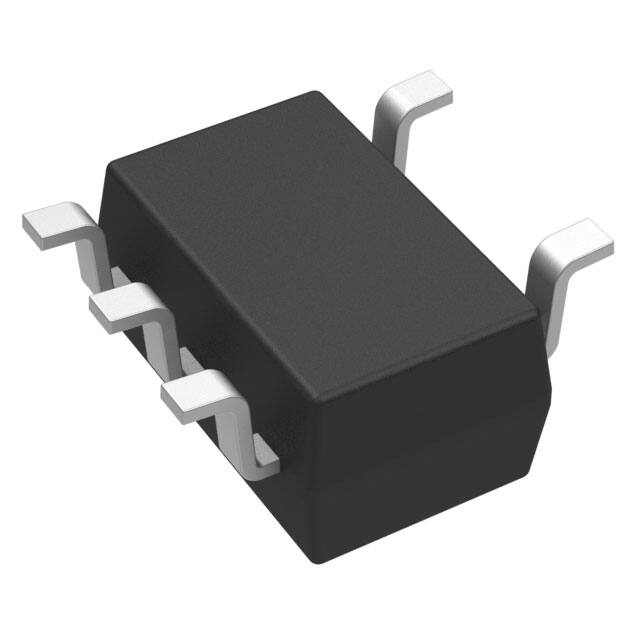

NC7S00M5 Integrated Circuits (ICs),Logic - Gates and InvertersNAND Gate IC 1 Channel SOT-23-5
DataSheet
Quantity:
Details Information
Aisa Part#: A19-NC7S00M5
Manufacturer Part #: NC7S00M5
Product Category: Integrated Circuits (ICs),Logic - Gates and Inverters
Manufacturer: ON Semiconductor
Package Type: SC-74A, SOT-753
CAD Model:
AltiumEagleOrCadPADSKiCad
By downloading CAD models from Asia, you agree to our Terms & Conditions and Privacy Policy.
Specifications
  • Mfr: ON Semiconductor
  • Series: 7S
  • Package: Bulk
  • Package: Tape & Reel (TR)Cut Tape (CT)Digi-Reel®
  • Part Status: Obsolete
  • Mounting Type: Surface Mount
  • Features: -
  • Operating Temperature: -40°C ~ 85°C
  • Base Product Number: NC7S00
  • Package / Case: SC-74A SOT-753
  • Voltage - Supply: 2V ~ 6V
  • Supplier Device Package: SOT-23-5
  • Logic Type: NAND Gate
  • Number of Inputs: 2
  • Current - Output High Low: 2．6mA 2．6mA
  • Number of Circuits: 1
  • Max Propagation Delay @ V Max CL: 17ns @ 6V 50pF
  • Logic Level - Low: 0．5V
  • Logic Level - High: 1．5V
  • Current - Quiescent (Max): 1µA
Functional compatible component(10) Form,Package,Functional compatible component(3)
Mfr. Part # Mfr. Description Compare
935271649125
Logic		 Nexperia NAND Gate， AHC Series， 1-Func， 2-Input， CMOS， PDSO5 NC7S00M5 vs 935271649125
NC7S00M5_NL
Logic		 Fairchild Semicond NAND Gate， HC/UH Series， 1-Func， 2-Input， CMOS， PDSO5， 1.60 MM， LEAD FREE， MO-178， SOT-23， 5 PIN NC7S00M5 vs NC7S00M5_NL
SN74AHC1G00DBVT
Logic		 Texas Instruments Single 2-Input Positive-NAND Gate 5-SOT-23 -40 to 125 NC7S00M5 vs SN74AHC1G00DBVT
TC7S00F(TE85L)
Logic		 Toshiba America El IC HC/UH SERIES， 2-INPUT NAND GATE， PDSO5， 0.95 MM PITCH， PLASTIC， SSOP-5， Gate NC7S00M5 vs TC7S00F(TE85L)
SN74AHC1G00QDBVRQ1
Logic		 Texas Instruments IC AHC SERIES， 2-INPUT NAND GATE， PDSO5， SOT-23， 5 PIN， Gate NC7S00M5 vs SN74AHC1G00QDBVRQ1
74AHC1G00GV
Logic		 Philips Semiconduc NAND Gate， CMOS， PDSO5， NC7S00M5 vs 74AHC1G00GV
SN74AHC1G00DBVRE4
Logic		 Texas Instruments Single 2-Input Positive-NAND Gate 5-SOT-23 -40 to 125 NC7S00M5 vs SN74AHC1G00DBVRE4
TC7S00F(TE12L)
Logic		 Toshiba America El IC HC/UH SERIES， 2-INPUT NAND GATE， PDSO5， PLASTIC， SSOP-5， Gate NC7S00M5 vs TC7S00F(TE12L)
SN74AHC1G00DBV
Logic		 Texas Instruments AHC SERIES， 2-INPUT NAND GATE， PDSO5， PLASTIC， SOT-5 NC7S00M5 vs SN74AHC1G00DBV
SN74AHC1G00IDBVRQ1
Logic		 Texas Instruments AHC SERIES， 2-INPUT NAND GATE， PDSO5， SOT-23， 5 PIN NC7S00M5 vs SN74AHC1G00IDBVRQ1
