Home > Integrated Circuits (ICs) > Logic - Buffers, Drivers, Receivers, Transceivers > NC7NP34K8X

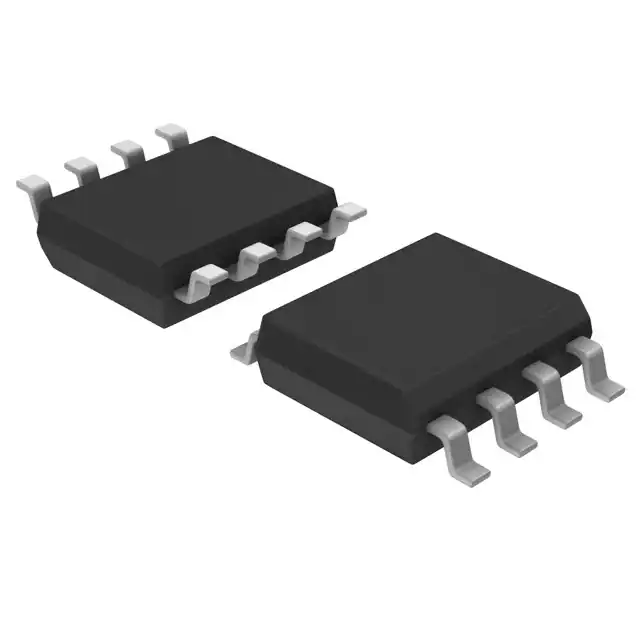

NC7NP34K8X Integrated Circuits (ICs),Logic - Buffers, Drivers, Receivers, TransceiversBuffer, Non-Inverting 3 Element 1 Bit per Element Push-Pull Output US8

DataSheet

Quantity:

Details Information

Aisa Part#: A19-NC7NP34K8X

Manufacturer Part #: NC7NP34K8X

Product Category: Integrated Circuits (ICs),Logic - Buffers, Drivers, Receivers, Transceivers

Manufacturer: ON Semiconductor

Package Type: 8-VFSOP (0.091"", 2.30mm Width)

CAD Model:

Altium Eagle OrCad PADS KiCad

By downloading CAD models from Asia, you agree to our Terms & Conditions and Privacy Policy.

Specifications

Mfr: ON Semiconductor
Series: 7NP
Package: Bulk
Package: Tape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part Status: Active
Mounting Type: Surface Mount
Operating Temperature: -40°C ~ 85°C (TA)
Base Product Number: NC7NP34
Package / Case: 8-VFSOP (0．091"" 2．30mm Width)
Output Type: Push-Pull
Voltage - Supply: 0．9V ~ 3．6V
Supplier Device Package: US8
Logic Type: Buffer Non-Inverting
Current - Output High Low: 2．6mA 2．6mA
Number of Elements: 3
Number of Bits per Element: 1
Input Type: -

Functional compatible component(2) Form,Package,Functional compatible component(2)

Mfr. Part #	Mfr.	Description	Compare
NC7NP34K8X Logic	ON Semiconductor	TinyLogic ULP Triple Buffer， 3000-REEL	NC7NP34K8X vs NC7NP34K8X
NC7NP34K8X_NL Logic	Fairchild Semicond	Buffer， P Series， 3-Func， 1-Input， CMOS， PDSO8， 3.10 MM， MO-187CA， US-8	NC7NP34K8X vs NC7NP34K8X_NL

Mfr. Part #	Mfr.	Description	Compare
NC7NP34K8X_NL Logic	Fairchild Semicond	Buffer， P Series， 3-Func， 1-Input， CMOS， PDSO8， 3.10 MM， MO-187CA， US-8	NC7NP34K8X vs NC7NP34K8X_NL
NC7NP34K8X Logic	ON Semiconductor	TinyLogic ULP Triple Buffer， 3000-REEL	NC7NP34K8X vs NC7NP34K8X

Customers Also Bought

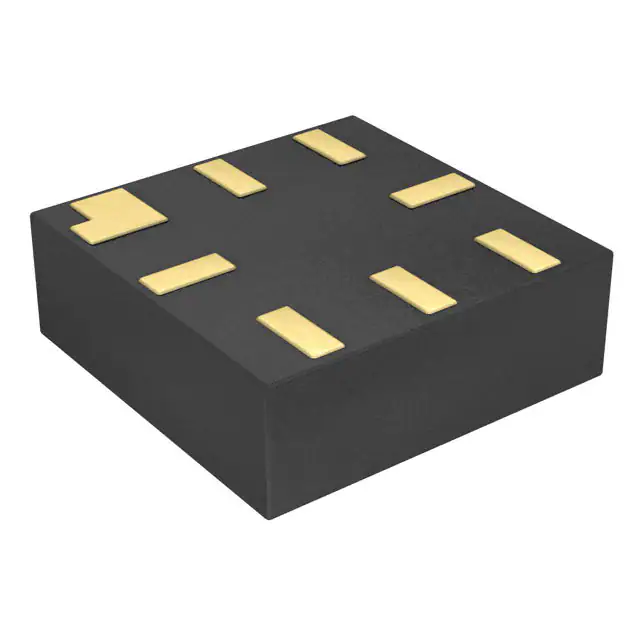

NC7NP34L8X ON Semiconductor Buffer, Non-Inverting 3 Element 1 Bit per Element Push-Pull Output 8-MicroPak™
