Home > Integrated Circuits (ICs) > Logic - Gates and Inverters > NC7NP04K8X

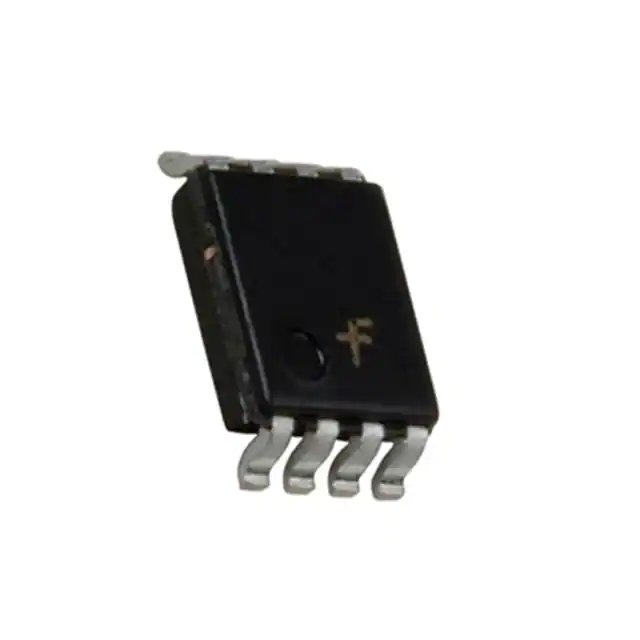

NC7NP04K8X Integrated Circuits (ICs),Logic - Gates and InvertersInverter IC 3 Channel US8

DataSheet

Quantity:

Details Information

Aisa Part#: A19-NC7NP04K8X

Manufacturer Part #: NC7NP04K8X

Product Category: Integrated Circuits (ICs),Logic - Gates and Inverters

Manufacturer: ON Semiconductor

Package Type: 8-VFSOP (0.091"", 2.30mm Width)

CAD Model:

Altium Eagle OrCad PADS KiCad

By downloading CAD models from Asia, you agree to our Terms & Conditions and Privacy Policy.

Specifications

Mfr: ON Semiconductor
Series: 7NP
Package: Tape & Reel (TR)
Part Status: Obsolete
Mounting Type: Surface Mount
Features: -
Operating Temperature: -40°C ~ 85°C
Base Product Number: NC7NP04
Package / Case: 8-VFSOP (0．091"" 2．30mm Width)
Voltage - Supply: 0．9V ~ 3．6V
Supplier Device Package: US8
Logic Type: Inverter
Number of Inputs: 3
Current - Output High Low: 2．6mA 2．6mA
Number of Circuits: 3
Max Propagation Delay @ V Max CL: 9．2ns @ 3．3V 30pF
Logic Level - Low: 0．7V ~ 0．9V
Logic Level - High: 1．6V ~ 2．1V
Current - Quiescent (Max): 900nA

Customers Also Bought

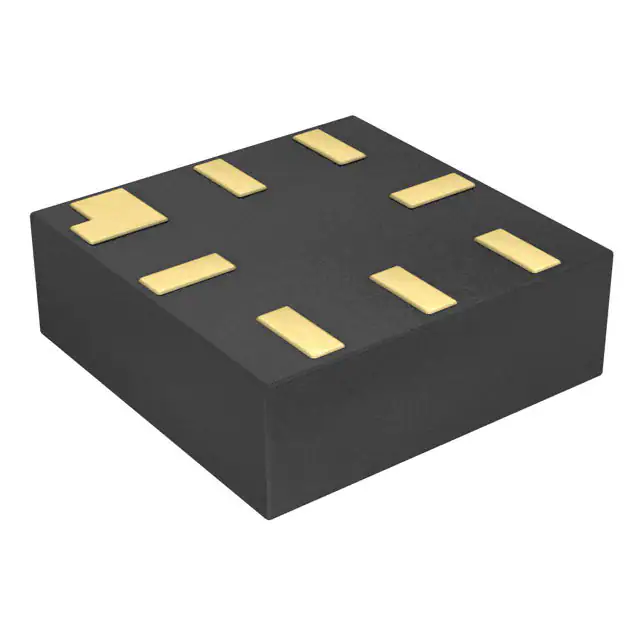

NC7NP04L8X ON Semiconductor Inverter IC 3 Channel 8-MicroPak™
