Home > Integrated Circuits (ICs) > Clock/Timing - Programmable Timers and Oscillators > NBXDPA019LN1TAG

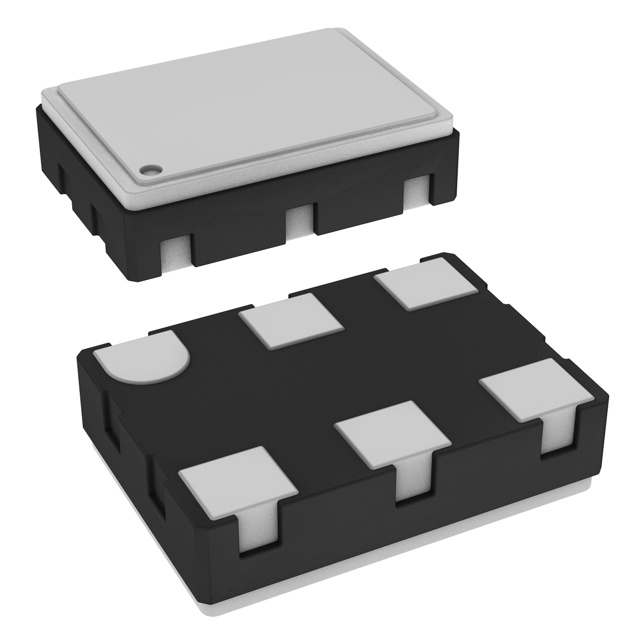

NBXDPA019LN1TAG Integrated Circuits (ICs),Clock/Timing - Programmable Timers and OscillatorsOscillator, Crystal IC 125MHz, 250MHz 6-CLCC (7x5)

DataSheet

Quantity:

Details Information

Aisa Part#: A19-NBXDPA019LN1TAG

Manufacturer Part #: NBXDPA019LN1TAG

Product Category: Integrated Circuits (ICs),Clock/Timing - Programmable Timers and Oscillators

Manufacturer: ON Semiconductor

Package Type: 6-CLCC

CAD Model:

Altium Eagle OrCad PADS KiCad

By downloading CAD models from Asia, you agree to our Terms & Conditions and Privacy Policy.

Specifications

Frequency: 125MHz 250MHz
Mfr: ON Semiconductor
Series: PureEdge™
Package: Tape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part Status: Obsolete
Mounting Type: Surface Mount
Operating Temperature: -40°C ~ 85°C
Type: Oscillator Crystal
Base Product Number: NBXDPA01
Package / Case: 6-CLCC
Voltage - Supply: 2．375V ~ 3．63V
Supplier Device Package: 6-CLCC (7x5)
Current - Supply: 78mA
Count: -

Functional compatible component(10)

Mfr. Part #	Mfr.	Description	Compare
VCC6-LAB-125M0000 Oscillators	Microsemi Corporat	LVDS Output Clock Oscillator， 125MHz Nom， ROHS COMPLIANT， HERMETIC SEALED， CERAMIC PACKAGE-6	NBXDPA019LN1TAG vs VCC6-LAB-125M0000
VCC6-VCB-125M0000 Oscillators	Microsemi Corporat	LVDS Output Clock Oscillator， 125MHz Nom， ROHS COMPLIANT， HERMETIC SEALED， CERAMIC PACKAGE-6	NBXDPA019LN1TAG vs VCC6-VCB-125M0000
532FB000122BGR Oscillators	Silicon Laboratori	LVDS Output Clock Oscillator， 125MHz Nom， ROHS COMPLIANT， SMD， 6 PIN	NBXDPA019LN1TAG vs 532FB000122BGR
530NB125M000DGR Oscillators	Silicon Laboratori	LVDS Output Clock Oscillator， 10MHz Min， 945MHz Max， 125MHz Nom， ROHS COMPLIANT， SMD， 6 PIN	NBXDPA019LN1TAG vs 530NB125M000DGR
SDS3824E-125.0000(T) Oscillators	Pericom Semiconduc	LVDS Output Clock Oscillator， 38.88MHz Min， 162MHz Max， 125MHz Nom， ROHS COMPLIANT， CERAMIC PACKAGE-	NBXDPA019LN1TAG vs SDS3824E-125.0000(T)
VC-706-HDE-KAAN-125M000000 Oscillators	Microsemi Corporat	LVDS Output Clock Oscillator， 125MHz Nom， ROHS COMPLIANT， HERMETIC SEALED， CERAMIC PACKAGE-6	NBXDPA019LN1TAG vs VC-706-HDE-KAAN-125M000000
SDS3830B-125.0000 Oscillators	Pericom Semiconduc	LVDS Output Clock Oscillator， 125MHz Nom， GREEN， CERAMIC PACKAGE-6	NBXDPA019LN1TAG vs SDS3830B-125.0000
VC-706-HDW-KABN-125M000000 Oscillators	Microsemi Corporat	LVDS Output Clock Oscillator， 125MHz Nom， ROHS COMPLIANT， HERMETIC SEALED， CERAMIC PACKAGE-6	NBXDPA019LN1TAG vs VC-706-HDW-KABN-125M000000
SDS3823E-125.0000(T) Oscillators	Pericom Semiconduc	LVDS Output Clock Oscillator， 38.88MHz Min， 162MHz Max， 125MHz Nom， ROHS COMPLIANT， CERAMIC PACKAGE-	NBXDPA019LN1TAG vs SDS3823E-125.0000(T)
KC7050P125.000L2GE00 Oscillators	KYOCERA Corporatio	LVDS Output Clock Oscillator， 125MHz Nom， ROHS COMPLIANT， MINIATURE， CERAMIC， SMD， 6 PIN	NBXDPA019LN1TAG vs KC7050P125.000L2GE00
