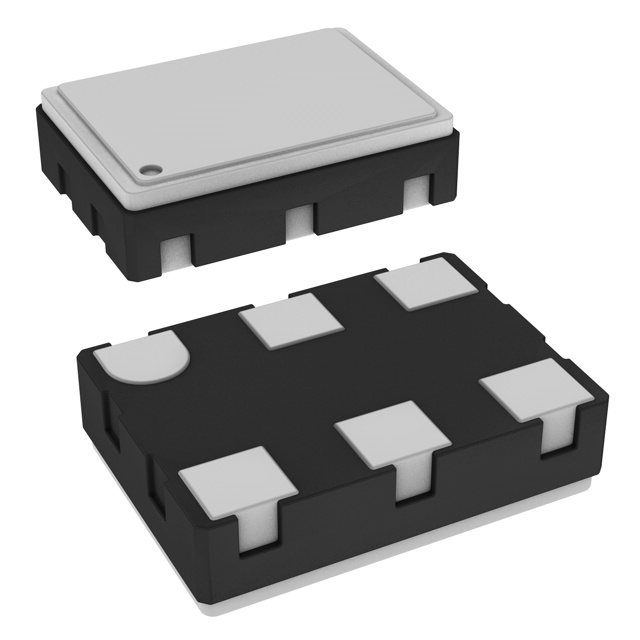

NBXDBA019LN1TAG Integrated Circuits (ICs),Clock/Timing - Programmable Timers and OscillatorsOscillator, Crystal IC 125MHz, 250MHz 6-CLCC (7x5)
DataSheet
Quantity:
Details Information
Aisa Part#: A19-NBXDBA019LN1TAG
Manufacturer Part #: NBXDBA019LN1TAG
Product Category: Integrated Circuits (ICs),Clock/Timing - Programmable Timers and Oscillators
Manufacturer: ON Semiconductor
Package Type: 6-CLCC
CAD Model:
AltiumEagleOrCadPADSKiCad
By downloading CAD models from Asia, you agree to our Terms & Conditions and Privacy Policy.
Specifications
  • Frequency: 125MHz 250MHz
  • Mfr: ON Semiconductor
  • Series: PureEdge™
  • Package: Bulk
  • Package: Tape & Reel (TR)
  • Part Status: Obsolete
  • Mounting Type: Surface Mount
  • Operating Temperature: -40°C ~ 85°C
  • Type: Oscillator Crystal
  • Base Product Number: NBXDBA01
  • Package / Case: 6-CLCC
  • Voltage - Supply: 2．97V ~ 3．63V
  • Supplier Device Package: 6-CLCC (7x5)
  • Current - Supply: 78mA
  • Count: -
