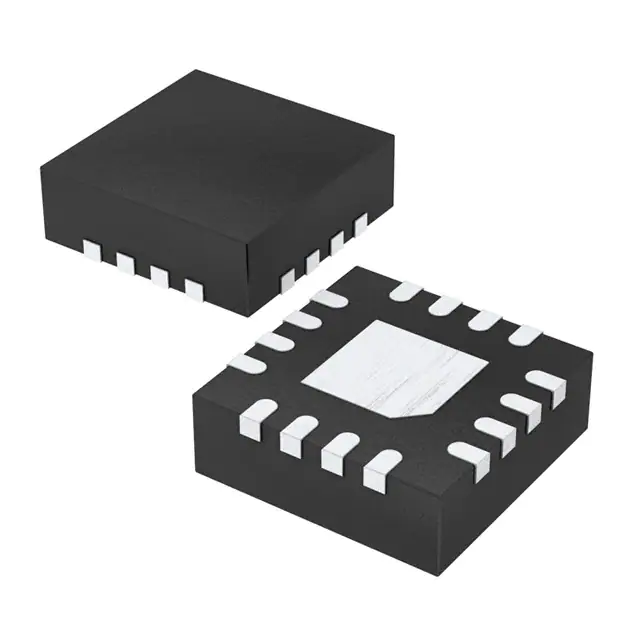

NBSG86AMNG Integrated Circuits (ICs),Logic - Gates and Inverters - Multi-Function, ConfigurableConfigurable Multiple Function Configurable 2 Circuit 2 Input 16-QFN (3x3)

DataSheet

Quantity:

Details Information

Aisa Part#: A19-NBSG86AMNG

Manufacturer Part #: NBSG86AMNG

Product Category: Integrated Circuits (ICs),Logic - Gates and Inverters - Multi-Function, Configurable

Manufacturer: ON Semiconductor

Package Type: 16-VFQFN Exposed Pad

CAD Model:

Altium Eagle OrCad PADS KiCad

By downloading CAD models from Asia, you agree to our Terms & Conditions and Privacy Policy.

Specifications

Mfr: ON Semiconductor
Series: -
Package: Tube
Part Status: Obsolete
Mounting Type: Surface Mount
Operating Temperature: -40°C ~ 85°C
Base Product Number: NBSG86
Package / Case: 16-VFQFN Exposed Pad
Output Type: Differential
Voltage - Supply: 2．375V ~ 3．465V
Supplier Device Package: 16-QFN (3x3)
Logic Type: Configurable Multiple Function
Number of Inputs: 2
Schmitt Trigger Input: No
Current - Output High Low: -
Number of Circuits: 2
