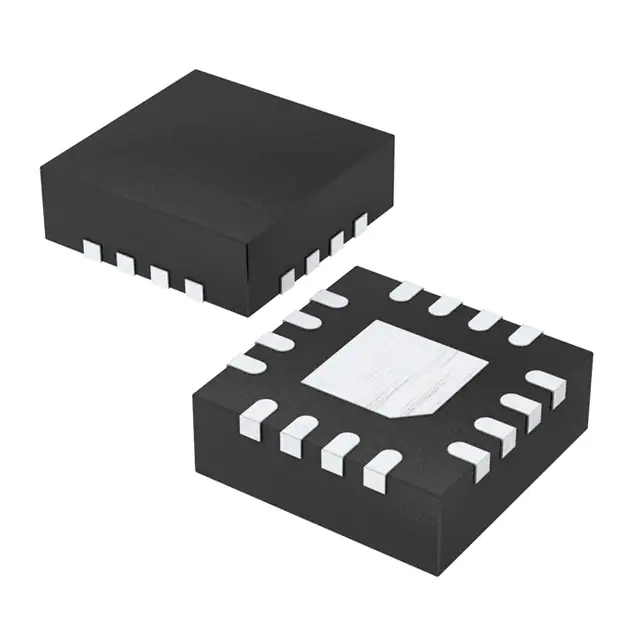

NBSG86AMN Integrated Circuits (ICs),Logic - Gates and Inverters - Multi-Function, ConfigurableConfigurable Multiple Function Configurable 2 Circuit 2 Input 16-QFN (3x3)

DataSheet

Quantity:

Details Information

Aisa Part#: A19-NBSG86AMN

Manufacturer Part #: NBSG86AMN

Product Category: Integrated Circuits (ICs),Logic - Gates and Inverters - Multi-Function, Configurable

Manufacturer: ON Semiconductor

Package Type: 16-VFQFN Exposed Pad

CAD Model:

Altium Eagle OrCad PADS KiCad

By downloading CAD models from Asia, you agree to our Terms & Conditions and Privacy Policy.

Specifications

Mfr: ON Semiconductor
Series: -
Package: Tube
Part Status: Obsolete
Mounting Type: Surface Mount
Operating Temperature: -40°C ~ 85°C
Base Product Number: NBSG86
Package / Case: 16-VFQFN Exposed Pad
Output Type: Differential
Voltage - Supply: 2．375V ~ 3．465V
Supplier Device Package: 16-QFN (3x3)
Logic Type: Configurable Multiple Function
Number of Inputs: 2
Schmitt Trigger Input: No
Current - Output High Low: -
Number of Circuits: 2

Functional compatible component(4) Form,Package,Functional compatible component(3)

Mfr. Part #	Mfr.	Description	Compare
NBSG86AMNR2 Logic	ON Semiconductor	SPECIALTY LOGIC CIRCUIT， QCC16， 3 X 3 MM， QFN-16	NBSG86AMN vs NBSG86AMNR2
NBSG86AMNHTBG Logic	ON Semiconductor	SiGe Differential Smart Gate， 2.5 V / 3.3 V， with Output Level Select， QFN16， 3x3， 0.5P， 100-REEL	NBSG86AMN vs NBSG86AMNHTBG
NBSG86AMNR2G Logic	ON Semiconductor	SiGe Differential Smart Gate， 2.5 V / 3.3 V， with Output Level Select， QFN16， 3x3， 0.5P， 3000-REEL	NBSG86AMN vs NBSG86AMNR2G
NBSG86AMNG Logic	ON Semiconductor	SiGe Differential Smart Gate， 2.5 V / 3.3 V， with Output Level Select， QFN16， 3x3， 0.5P， 123-TUBE	NBSG86AMN vs NBSG86AMNG

Mfr. Part #	Mfr.	Description	Compare
NBSG86AMNR2 Logic	ON Semiconductor	SPECIALTY LOGIC CIRCUIT， QCC16， 3 X 3 MM， QFN-16	NBSG86AMN vs NBSG86AMNR2
NBSG86AMNG Logic	ON Semiconductor	SiGe Differential Smart Gate， 2.5 V / 3.3 V， with Output Level Select， QFN16， 3x3， 0.5P， 123-TUBE	NBSG86AMN vs NBSG86AMNG
NBSG86AMNR2G Logic	ON Semiconductor	SiGe Differential Smart Gate， 2.5 V / 3.3 V， with Output Level Select， QFN16， 3x3， 0.5P， 3000-REEL	NBSG86AMN vs NBSG86AMNR2G
