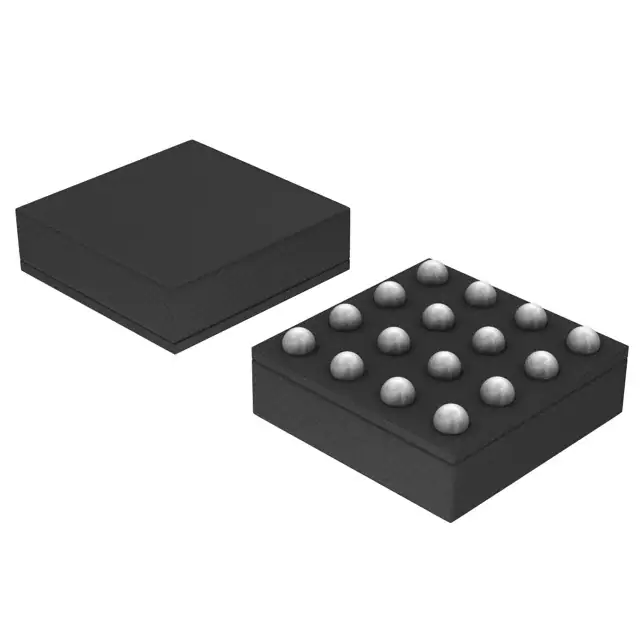

NBSG86ABAR2 Integrated Circuits (ICs),Logic - Gates and Inverters - Multi-Function, ConfigurableConfigurable Multiple Function Configurable 2 Circuit 2 Input 16-FCBGA (4x4)

DataSheet

Quantity:

Details Information

Aisa Part#: A19-NBSG86ABAR2

Manufacturer Part #: NBSG86ABAR2

Product Category: Integrated Circuits (ICs),Logic - Gates and Inverters - Multi-Function, Configurable

Manufacturer: ON Semiconductor

Package Type: 16-LBGA, FCBGA

CAD Model:

Altium Eagle OrCad PADS KiCad

By downloading CAD models from Asia, you agree to our Terms & Conditions and Privacy Policy.

Specifications

Mfr: ON Semiconductor
Series: -
Package: Tape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part Status: Obsolete
Mounting Type: Surface Mount
Operating Temperature: -40°C ~ 85°C
Base Product Number: NBSG86
Package / Case: 16-LBGA FCBGA
Output Type: Differential
Voltage - Supply: 2．375V ~ 3．465V
Supplier Device Package: 16-FCBGA (4x4)
Logic Type: Configurable Multiple Function
Number of Inputs: 2
Schmitt Trigger Input: No
Current - Output High Low: -
Number of Circuits: 2

Functional compatible component(4) Form,Package,Functional compatible component(4)

Mfr. Part #	Mfr.	Description	Compare
NBSG86ABAR2G Logic	ON Semiconductor	SPECIALTY LOGIC CIRCUIT， PBGA16， 4 X 4 MM， PLASTIC， FCBGA-16	NBSG86ABAR2 vs NBSG86ABAR2G
NBSG86ABAG Logic	ON Semiconductor	SPECIALTY LOGIC CIRCUIT， PBGA16， 4 X 4 MM， PLASTIC， FCBGA-16	NBSG86ABAR2 vs NBSG86ABAG
NBSG86ABAHTBG Logic	ON Semiconductor	IC SPECIALTY LOGIC CIRCUIT， PBGA16， 4 X 4 MM， LEAD FREE， PLASTIC， FCBGA-16， Logic IC:Other	NBSG86ABAR2 vs NBSG86ABAHTBG
NBSG86ABA Logic	ON Semiconductor	IC SPECIALTY LOGIC CIRCUIT， PBGA16， 4 X 4 MM， PLASTIC， FCBGA-16， Logic IC:Other	NBSG86ABAR2 vs NBSG86ABA

Mfr. Part #	Mfr.	Description	Compare
NBSG86ABA Logic	ON Semiconductor	IC SPECIALTY LOGIC CIRCUIT， PBGA16， 4 X 4 MM， PLASTIC， FCBGA-16， Logic IC:Other	NBSG86ABAR2 vs NBSG86ABA
NBSG86ABAG Logic	ON Semiconductor	SPECIALTY LOGIC CIRCUIT， PBGA16， 4 X 4 MM， PLASTIC， FCBGA-16	NBSG86ABAR2 vs NBSG86ABAG
NBSG86ABAHTBG Logic	ON Semiconductor	IC SPECIALTY LOGIC CIRCUIT， PBGA16， 4 X 4 MM， LEAD FREE， PLASTIC， FCBGA-16， Logic IC:Other	NBSG86ABAR2 vs NBSG86ABAHTBG
NBSG86ABAR2G Logic	ON Semiconductor	SPECIALTY LOGIC CIRCUIT， PBGA16， 4 X 4 MM， PLASTIC， FCBGA-16	NBSG86ABAR2 vs NBSG86ABAR2G
