Home > Integrated Circuits (ICs) > FPGAs-Field Programmable Gate Arrays > EP2SGX90FF1508I4N

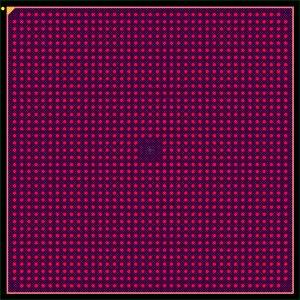

EP2SGX90FF1508I4N Integrated Circuits (ICs),FPGAs-Field Programmable Gate ArraysFPGA Stratix II GX Family 90960 Cells 732.1MHz SRAM Technology 1.2V 1508-Pin FC-FBGA

DataSheet

Quantity:

Details Information

Aisa Part#: A19-EP2SGX90FF1508I4N

Manufacturer Part #: EP2SGX90FF1508I4N

Product Category: Integrated Circuits (ICs),FPGAs-Field Programmable Gate Arrays

Manufacturer: ALTERA

Package Type: NA

CAD Model:

Altium Eagle OrCad PADS KiCad

By downloading CAD models from Asia, you agree to our Terms & Conditions and Privacy Policy.

Specifications

Case/Package: FBGA
Data Rate: 600 Mbps
Max Operating Temperature: 100 °C
Min Operating Temperature: -40 °C
Number of I/Os: 650
Operating Supply Voltage: 1.2 V

Functional compatible component(5) Form,Package,Functional compatible component(5)

Mfr. Part #	Mfr.	Description	Compare
EP2SGX90FF1508C4 Programmable Logic	Intel Corporation	Field Programmable Gate Array， 90960 CLBs， 717MHz， 90960-Cell， CMOS， PBGA1508， 40 X 40 MM， 1 MM PITC	EP2SGX90FF1508I4N vs EP2SGX90FF1508C4
EP2SGX90FF1508C4N Programmable Logic	Intel Corporation	Field Programmable Gate Array， 90960 CLBs， 717MHz， 90960-Cell， CMOS， PBGA1508， 40 X 40 MM， 1 MM PITC	EP2SGX90FF1508I4N vs EP2SGX90FF1508C4N
EP2SGX90FF1508I4 Programmable Logic	Intel Corporation	Field Programmable Gate Array， 90960 CLBs， 717MHz， 90960-Cell， CMOS， PBGA1508， 40 X 40 MM， 1 MM PITC	EP2SGX90FF1508I4N vs EP2SGX90FF1508I4
EP2SGX90FF1508C4ES Programmable Logic	Intel Corporation	Field Programmable Gate Array， 4828 CLBs， CMOS， PBGA1508， 40 X 40 MM， FPGA-1508	EP2SGX90FF1508I4N vs EP2SGX90FF1508C4ES
EP2SGX90FF1508I4N Programmable Logic	Intel Corporation	Field Programmable Gate Array， 90960 CLBs， 717MHz， 90960-Cell， CMOS， PBGA1508， 40 X 40 MM， 1 MM PITC	EP2SGX90FF1508I4N vs EP2SGX90FF1508I4N

Mfr. Part #	Mfr.	Description	Compare
EP2SGX90FF1508I4N Programmable Logic	Intel Corporation	Field Programmable Gate Array， 90960 CLBs， 717MHz， 90960-Cell， CMOS， PBGA1508， 40 X 40 MM， 1 MM PITC	EP2SGX90FF1508I4N vs EP2SGX90FF1508I4N
EP2SGX90FF1508C4ES Programmable Logic	Intel Corporation	Field Programmable Gate Array， 4828 CLBs， CMOS， PBGA1508， 40 X 40 MM， FPGA-1508	EP2SGX90FF1508I4N vs EP2SGX90FF1508C4ES
EP2SGX90FF1508C4N Programmable Logic	Intel Corporation	Field Programmable Gate Array， 90960 CLBs， 717MHz， 90960-Cell， CMOS， PBGA1508， 40 X 40 MM， 1 MM PITC	EP2SGX90FF1508I4N vs EP2SGX90FF1508C4N
EP2SGX90FF1508C4 Programmable Logic	Intel Corporation	Field Programmable Gate Array， 90960 CLBs， 717MHz， 90960-Cell， CMOS， PBGA1508， 40 X 40 MM， 1 MM PITC	EP2SGX90FF1508I4N vs EP2SGX90FF1508C4
EP2SGX90FF1508I4 Programmable Logic	Intel Corporation	Field Programmable Gate Array， 90960 CLBs， 717MHz， 90960-Cell， CMOS， PBGA1508， 40 X 40 MM， 1 MM PITC	EP2SGX90FF1508I4N vs EP2SGX90FF1508I4

Customers Also Bought

XC2S100-6PQG208C XILINX FPGA Spartan-II Family 100K Gates 2700 Cells 263MHz 0.18um Technology 2.5V 208-Pin PQFP
EP4SGX360HF35I4N ALTERA FPGA Stratix? IV GX Family 353600 Cells 40nm Technology 0.9V 1152-Pin FC-FBGA
XA6SLX45-3CSG324I XILINX FPGA XA Spartan-6 Family 43661 Cells 45nm (CMOS) Technology 1.2V 324-Pin CS-BGA

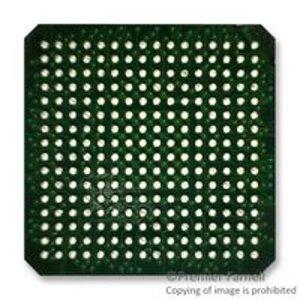

EP3C10F256C7N ALTERA FPGA Cyclone? III Family 10320 Cells 437.5MHz 65nm Technology 1.2V 256-Pin TFBGA
