Home > Integrated Circuits (ICs) > FPGAs-Field Programmable Gate Arrays > EP2SGX90FF1508C5

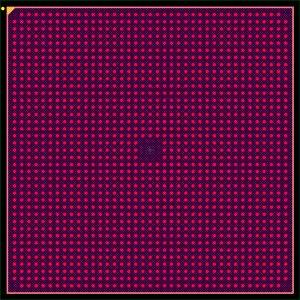

EP2SGX90FF1508C5 Integrated Circuits (ICs),FPGAs-Field Programmable Gate ArraysFPGA Stratix? II GX Family 90960 Cells 609.76MHz 90nm Technology 1.2V 1508-Pin FC-FBGA

DataSheet

Quantity:

Details Information

Aisa Part#: A19-EP2SGX90FF1508C5

Manufacturer Part #: EP2SGX90FF1508C5

Product Category: Integrated Circuits (ICs),FPGAs-Field Programmable Gate Arrays

Manufacturer: ALTERA

Package Type: QFP

CAD Model:

Altium Eagle OrCad PADS KiCad

By downloading CAD models from Asia, you agree to our Terms & Conditions and Privacy Policy.

Specifications

Case/Package: FBGA
Data Rate: 600 Mbps
Max Operating Temperature: 85 °C
Min Operating Temperature: 0 °C
Number of I/Os: 650
Operating Supply Voltage: 1.2 V

Functional compatible component(5) Form,Package,Functional compatible component(5)

Mfr. Part #	Mfr.	Description	Compare
EP2SGX90FF1508I5 Programmable Logic	Intel Corporation	Field Programmable Gate Array， 90960 CLBs， 622.08MHz， 90960-Cell， CMOS， PBGA1508， 40 X 40 MM， 1 MM P	EP2SGX90FF1508C5 vs EP2SGX90FF1508I5
EP2SGX90FF1508C5ES Programmable Logic	Altera Corporation	Field Programmable Gate Array， 4828 CLBs， CMOS， PBGA1508， 40 X 40 MM， FPGA-1508	EP2SGX90FF1508C5 vs EP2SGX90FF1508C5ES
EP2SGX90FF1508C5N Programmable Logic	Intel Corporation	Field Programmable Gate Array， 90960 CLBs， 640MHz， 90960-Cell， CMOS， PBGA1508， 40 X 40 MM， 1 MM PITC	EP2SGX90FF1508C5 vs EP2SGX90FF1508C5N
EP2SGX90FF1508I5N Programmable Logic	Intel Corporation	Field Programmable Gate Array， 90960 CLBs， 622.08MHz， 90960-Cell， CMOS， PBGA1508， 40 X 40 MM， 1 MM P	EP2SGX90FF1508C5 vs EP2SGX90FF1508I5N
EP2SGX90FF1508C5 Programmable Logic	Intel Corporation	Field Programmable Gate Array， 90960 CLBs， 640MHz， 90960-Cell， CMOS， PBGA1508， 40 X 40 MM， 1 MM PITC	EP2SGX90FF1508C5 vs EP2SGX90FF1508C5

Mfr. Part #	Mfr.	Description	Compare
EP2SGX90FF1508C5 Programmable Logic	Intel Corporation	Field Programmable Gate Array， 90960 CLBs， 640MHz， 90960-Cell， CMOS， PBGA1508， 40 X 40 MM， 1 MM PITC	EP2SGX90FF1508C5 vs EP2SGX90FF1508C5
EP2SGX90FF1508C5N Programmable Logic	Intel Corporation	Field Programmable Gate Array， 90960 CLBs， 640MHz， 90960-Cell， CMOS， PBGA1508， 40 X 40 MM， 1 MM PITC	EP2SGX90FF1508C5 vs EP2SGX90FF1508C5N
EP2SGX90FF1508C5ES Programmable Logic	Altera Corporation	Field Programmable Gate Array， 4828 CLBs， CMOS， PBGA1508， 40 X 40 MM， FPGA-1508	EP2SGX90FF1508C5 vs EP2SGX90FF1508C5ES
EP2SGX90FF1508I5N Programmable Logic	Intel Corporation	Field Programmable Gate Array， 90960 CLBs， 622.08MHz， 90960-Cell， CMOS， PBGA1508， 40 X 40 MM， 1 MM P	EP2SGX90FF1508C5 vs EP2SGX90FF1508I5N
EP2SGX90FF1508I5 Programmable Logic	Intel Corporation	Field Programmable Gate Array， 90960 CLBs， 622.08MHz， 90960-Cell， CMOS， PBGA1508， 40 X 40 MM， 1 MM P	EP2SGX90FF1508C5 vs EP2SGX90FF1508I5
