Home > Integrated Circuits (ICs) > FPGAs-Field Programmable Gate Arrays > EP2SGX60DF780C3N

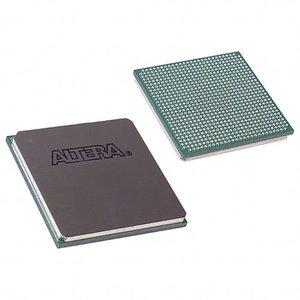

EP2SGX60DF780C3N Integrated Circuits (ICs),FPGAs-Field Programmable Gate ArraysFPGA Stratix? II GX Family 60440 Cells 816.9MHz 90nm Technology 1.2V 780-Pin FC-FBGA

DataSheet

Quantity:

Details Information

Aisa Part#: A19-EP2SGX60DF780C3N

Manufacturer Part #: EP2SGX60DF780C3N

Product Category: Integrated Circuits (ICs),FPGAs-Field Programmable Gate Arrays

Manufacturer: ALTERA

Package Type: 780FBGA

CAD Model:

Altium Eagle OrCad PADS KiCad

By downloading CAD models from Asia, you agree to our Terms & Conditions and Privacy Policy.

Specifications

Case/Package: FBGA
Data Rate: 600 Mbps
Max Operating Temperature: 85 °C
Min Operating Temperature: 0 °C
Number of I/Os: 364
Operating Supply Voltage: 1.2 V

Functional compatible component(10) Form,Package,Functional compatible component(1)

Mfr. Part #	Mfr.	Description	Compare
EP2SGX60CF780C4N Programmable Logic	Intel Corporation	Field Programmable Gate Array， 60440 CLBs， 717MHz， 60440-Cell， CMOS， PBGA780， 29 X 29 MM， 1 MM PITCH	EP2SGX60DF780C3N vs EP2SGX60CF780C4N
EP2SGX60DF780I4 Programmable Logic	Intel Corporation	Field Programmable Gate Array， 60440 CLBs， 717MHz， 60440-Cell， CMOS， PBGA780， 29 X 29 MM， 1 MM PITCH	EP2SGX60DF780C3N vs EP2SGX60DF780I4
EP2SGX60CF780C5N Programmable Logic	Intel Corporation	Field Programmable Gate Array， 60440 CLBs， 640MHz， 60440-Cell， CMOS， PBGA780， 29 X 29 MM， 1 MM PITCH	EP2SGX60DF780C3N vs EP2SGX60CF780C5N
EP2SGX60DF780C3N Programmable Logic	Intel Corporation	Field Programmable Gate Array， 60440 CLBs， 717MHz， 60440-Cell， CMOS， PBGA780， 29 X 29 MM， 1 MM PITCH	EP2SGX60DF780C3N vs EP2SGX60DF780C3N
EP2SGX60CF780I4N Programmable Logic	Intel Corporation	Field Programmable Gate Array， 60440 CLBs， 622.08MHz， 60440-Cell， CMOS， PBGA780， 29 X 29 MM， 1 MM PI	EP2SGX60DF780C3N vs EP2SGX60CF780I4N
EP2SGX60DF780C5N Programmable Logic	Intel Corporation	Field Programmable Gate Array， 60440 CLBs， 640MHz， 60440-Cell， CMOS， PBGA780， 29 X 29 MM， 1 MM PITCH	EP2SGX60DF780C3N vs EP2SGX60DF780C5N
EP2SGX60DF780C4N Programmable Logic	Intel Corporation	Field Programmable Gate Array， 60440 CLBs， 717MHz， 60440-Cell， CMOS， PBGA780， 29 X 29 MM， 1 MM PITCH	EP2SGX60DF780C3N vs EP2SGX60DF780C4N
EP2SGX60DF780I4N Programmable Logic	Intel Corporation	Field Programmable Gate Array， 60440 CLBs， 717MHz， 60440-Cell， CMOS， PBGA780， 29 X 29 MM， 1 MM PITCH	EP2SGX60DF780C3N vs EP2SGX60DF780I4N
EP2SGX60CF780C3N Programmable Logic	Intel Corporation	Field Programmable Gate Array， 60440 CLBs， 717MHz， 60440-Cell， CMOS， PBGA780， 29 X 29 MM， 1 MM PITCH	EP2SGX60DF780C3N vs EP2SGX60CF780C3N
EP2SGX60DF780I5N Programmable Logic	Altera Corporation	Field Programmable Gate Array， 60440 CLBs， 622.08MHz， 60440-Cell， CMOS， PBGA780， 29 X 29 MM， 1 MM PI	EP2SGX60DF780C3N vs EP2SGX60DF780I5N

Mfr. Part #	Mfr.	Description	Compare
EP2SGX60DF780C3N Programmable Logic	Intel Corporation	Field Programmable Gate Array， 60440 CLBs， 717MHz， 60440-Cell， CMOS， PBGA780， 29 X 29 MM， 1 MM PITCH	EP2SGX60DF780C3N vs EP2SGX60DF780C3N
