Home > Integrated Circuits (ICs) > FPGAs-Field Programmable Gate Arrays > EP2SGX130GF1508C3

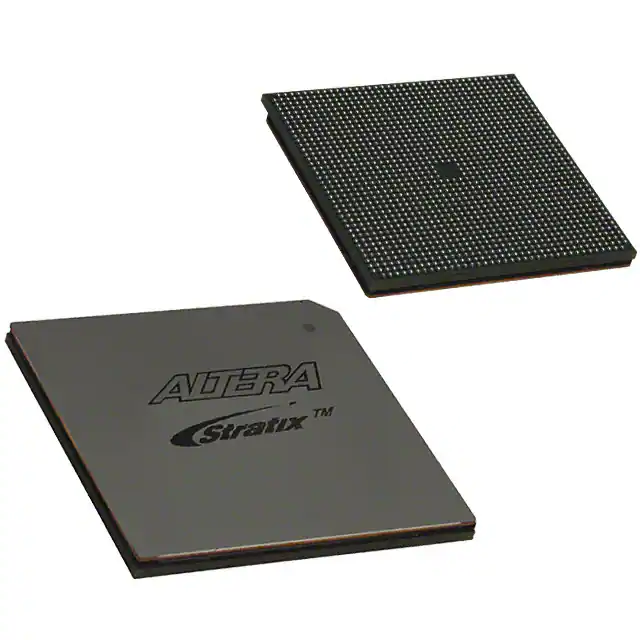

EP2SGX130GF1508C3 Integrated Circuits (ICs),FPGAs-Field Programmable Gate ArraysFPGA Stratix II GX Family 132540 Cells 778.82MHz SRAM Technology 1.2V 1508-Pin FC-FBGA

DataSheet

Quantity:

Details Information

Aisa Part#: A19-EP2SGX130GF1508C3

Manufacturer Part #: EP2SGX130GF1508C3

Product Category: Integrated Circuits (ICs),FPGAs-Field Programmable Gate Arrays

Manufacturer: ALTERA

Package Type: ALT-2017

CAD Model:

Altium Eagle OrCad PADS KiCad

By downloading CAD models from Asia, you agree to our Terms & Conditions and Privacy Policy.

Specifications

Case/Package: FBGA
Data Rate: 600 Mbps
Max Operating Temperature: 70 °C
Min Operating Temperature: 0 °C
Number of I/Os: 734
Operating Supply Voltage: 1.2 V

Functional compatible component(4) Form,Package,Functional compatible component(4)

Mfr. Part #	Mfr.	Description	Compare
EP2SGX130GF1508I3 Programmable Logic	Intel Corporation	Field Programmable Gate Array， 132540 CLBs， 622.08MHz， 132540-Cell， CMOS， PBGA1508， 40 X 40 MM， 1 MM	EP2SGX130GF1508C3 vs EP2SGX130GF1508I3
EP2SGX130GF1508C3N Programmable Logic	Intel Corporation	Field Programmable Gate Array， 132540 CLBs， 717MHz， 132540-Cell， CMOS， PBGA1508， 40 X 40 MM， 1 MM PI	EP2SGX130GF1508C3 vs EP2SGX130GF1508C3N
EP2SGX130GF1508I3N Programmable Logic	Intel Corporation	Field Programmable Gate Array， 132540 CLBs， 622.08MHz， 132540-Cell， CMOS， PBGA1508， 40 X 40 MM， 1 MM	EP2SGX130GF1508C3 vs EP2SGX130GF1508I3N
EP2SGX130GF1508C3 Programmable Logic	Altera Corporation	Field Programmable Gate Array， 132540 CLBs， 717MHz， 132540-Cell， CMOS， PBGA1508， 40 X 40 MM， 1 MM PI	EP2SGX130GF1508C3 vs EP2SGX130GF1508C3

Mfr. Part #	Mfr.	Description	Compare
EP2SGX130GF1508C3 Programmable Logic	Altera Corporation	Field Programmable Gate Array， 132540 CLBs， 717MHz， 132540-Cell， CMOS， PBGA1508， 40 X 40 MM， 1 MM PI	EP2SGX130GF1508C3 vs EP2SGX130GF1508C3
EP2SGX130GF1508I3N Programmable Logic	Intel Corporation	Field Programmable Gate Array， 132540 CLBs， 622.08MHz， 132540-Cell， CMOS， PBGA1508， 40 X 40 MM， 1 MM	EP2SGX130GF1508C3 vs EP2SGX130GF1508I3N
EP2SGX130GF1508C3N Programmable Logic	Intel Corporation	Field Programmable Gate Array， 132540 CLBs， 717MHz， 132540-Cell， CMOS， PBGA1508， 40 X 40 MM， 1 MM PI	EP2SGX130GF1508C3 vs EP2SGX130GF1508C3N
EP2SGX130GF1508I3 Programmable Logic	Intel Corporation	Field Programmable Gate Array， 132540 CLBs， 622.08MHz， 132540-Cell， CMOS， PBGA1508， 40 X 40 MM， 1 MM	EP2SGX130GF1508C3 vs EP2SGX130GF1508I3
