Home > Integrated Circuits (ICs) > FPGAs-Field Programmable Gate Arrays > EP2S90F780C5

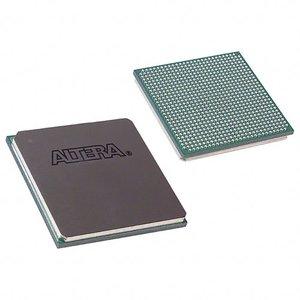

EP2S90F780C5 Integrated Circuits (ICs),FPGAs-Field Programmable Gate ArraysFPGA Stratix? II Family 90960 Cells 609.76MHz 90nm (CMOS) Technology 1.2V 780-Pin FC-FBGA

DataSheet

Quantity:

Details Information

Aisa Part#: A19-EP2S90F780C5

Manufacturer Part #: EP2S90F780C5

Product Category: Integrated Circuits (ICs),FPGAs-Field Programmable Gate Arrays

Manufacturer: ALTERA

Package Type: ALT-2017

CAD Model:

Altium Eagle OrCad PADS KiCad

By downloading CAD models from Asia, you agree to our Terms & Conditions and Privacy Policy.

Specifications

Case/Package: FBGA
Max Operating Temperature: 85 °C
Min Operating Temperature: 0 °C
Number of I/Os: 534
Operating Supply Voltage: 1.2 V

Functional compatible component(7) Form,Package,Functional compatible component(2)

Mfr. Part #	Mfr.	Description	Compare
EP2S90F780C4N Programmable Logic	Intel Corporation	Field Programmable Gate Array， 4548 CLBs， 717MHz， 90960-Cell， CMOS， PBGA780， 29 X 29 MM， 1 MM PITCH，	EP2S90F780C5 vs EP2S90F780C4N
EP2S90F780C4 Programmable Logic	Intel Corporation	Field Programmable Gate Array， 36384 CLBs， 717MHz， 90960-Cell， CMOS， PBGA780， 29 X 29 MM， 1 MM PITCH	EP2S90F780C5 vs EP2S90F780C4
EP2S90F780C5 Programmable Logic	Intel Corporation	Field Programmable Gate Array， 36384 CLBs， 640MHz， 90960-Cell， CMOS， PBGA780， 29 X 29 MM， 1 MM PITCH	EP2S90F780C5 vs EP2S90F780C5
EP2S90F780I4N Programmable Logic	Intel Corporation	Field Programmable Gate Array， 4548 CLBs， 717MHz， 90960-Cell， CMOS， PBGA780， 29 X 29 MM， 1 MM PITCH，	EP2S90F780C5 vs EP2S90F780I4N
EP2S90F780I5 Programmable Logic	Intel Corporation	Field Programmable Gate Array， 4828 CLBs， 90960-Cell， CMOS， PBGA780， 29 X 29 MM， 1 MM PITCH， FBGA-78	EP2S90F780C5 vs EP2S90F780I5
EP2S90F780I4 Programmable Logic	Intel Corporation	Field Programmable Gate Array， 4548 CLBs， 717MHz， 90960-Cell， CMOS， PBGA780， 29 X 29 MM， 1 MM PITCH，	EP2S90F780C5 vs EP2S90F780I4
EP2S90F780C5N Programmable Logic	Intel Corporation	Field Programmable Gate Array， 4548 CLBs， 640MHz， 90960-Cell， CMOS， PBGA780， 29 X 29 MM， 1 MM PITCH，	EP2S90F780C5 vs EP2S90F780C5N

Mfr. Part #	Mfr.	Description	Compare
EP2S90F780C5 Programmable Logic	Intel Corporation	Field Programmable Gate Array， 36384 CLBs， 640MHz， 90960-Cell， CMOS， PBGA780， 29 X 29 MM， 1 MM PITCH	EP2S90F780C5 vs EP2S90F780C5
EP2S90F780C5N Programmable Logic	Intel Corporation	Field Programmable Gate Array， 4548 CLBs， 640MHz， 90960-Cell， CMOS， PBGA780， 29 X 29 MM， 1 MM PITCH，	EP2S90F780C5 vs EP2S90F780C5N
