Home > Integrated Circuits (ICs) > FPGAs-Field Programmable Gate Arrays > EP2S60F1020C5N

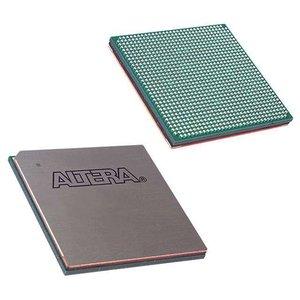

EP2S60F1020C5N Integrated Circuits (ICs),FPGAs-Field Programmable Gate ArraysFPGA Stratix? II Family 60440 Cells 609.76MHz 90nm (CMOS) Technology 1.2V 1020-Pin FC-FBGA

DataSheet

Quantity:

Details Information

Aisa Part#: A19-EP2S60F1020C5N

Manufacturer Part #: EP2S60F1020C5N

Product Category: Integrated Circuits (ICs),FPGAs-Field Programmable Gate Arrays

Manufacturer: ALTERA

Package Type: BGA

CAD Model:

Altium Eagle OrCad PADS KiCad

By downloading CAD models from Asia, you agree to our Terms & Conditions and Privacy Policy.

Specifications

Case/Package: FBGA
Max Operating Temperature: 85 °C
Min Operating Temperature: 0 °C
Number of I/Os: 718
Operating Supply Voltage: 1.2 V

Functional compatible component(8) Form,Package,Functional compatible component(2)

Mfr. Part #	Mfr.	Description	Compare
EP2S60F1020C5N Programmable Logic	Intel Corporation	Field Programmable Gate Array， 24176 CLBs， 640MHz， 60440-Cell， CMOS， PBGA1020， 33 X 33 MM， 1 MM PITC	EP2S60F1020C5N vs EP2S60F1020C5N
EP2S60F1020C3N Programmable Logic	Intel Corporation	Field Programmable Gate Array， 24176 CLBs， 717MHz， 60440-Cell， CMOS， PBGA1020， 33 X 33 MM， 1 MM PITC	EP2S60F1020C5N vs EP2S60F1020C3N
EP2S60F1020C4 Programmable Logic	Intel Corporation	Field Programmable Gate Array， 24176 CLBs， 717MHz， 60440-Cell， CMOS， PBGA1020， 33 X 33 MM， 1 MM PITC	EP2S60F1020C5N vs EP2S60F1020C4
EP2S60F1020C3 Programmable Logic	Intel Corporation	Field Programmable Gate Array， 24176 CLBs， 717MHz， 60440-Cell， CMOS， PBGA1020， 33 X 33 MM， 1 MM PITC	EP2S60F1020C5N vs EP2S60F1020C3
EP2S60F1020C4N Programmable Logic	Intel Corporation	Field Programmable Gate Array， 24176 CLBs， 717MHz， 60440-Cell， CMOS， PBGA1020， 33 X 33 MM， 1 MM PITC	EP2S60F1020C5N vs EP2S60F1020C4N
EP2S60F1020I4 Programmable Logic	Intel Corporation	Field Programmable Gate Array， 24176 CLBs， 717MHz， 60440-Cell， CMOS， PBGA1020， 33 X 33 MM， 1 MM PITC	EP2S60F1020C5N vs EP2S60F1020I4
EP2S60F1020C5 Programmable Logic	Intel Corporation	Field Programmable Gate Array， 24176 CLBs， 640MHz， 60440-Cell， CMOS， PBGA1020， 33 X 33 MM， 1 MM PITC	EP2S60F1020C5N vs EP2S60F1020C5
EP2S60F1020I4N Programmable Logic	Intel Corporation	Field Programmable Gate Array， 3022 CLBs， 717MHz， 60440-Cell， CMOS， PBGA1020， 33 X 33 MM， 1 MM PITCH	EP2S60F1020C5N vs EP2S60F1020I4N

Mfr. Part #	Mfr.	Description	Compare
EP2S60F1020C5 Programmable Logic	Intel Corporation	Field Programmable Gate Array， 24176 CLBs， 640MHz， 60440-Cell， CMOS， PBGA1020， 33 X 33 MM， 1 MM PITC	EP2S60F1020C5N vs EP2S60F1020C5
EP2S60F1020C5N Programmable Logic	Intel Corporation	Field Programmable Gate Array， 24176 CLBs， 640MHz， 60440-Cell， CMOS， PBGA1020， 33 X 33 MM， 1 MM PITC	EP2S60F1020C5N vs EP2S60F1020C5N
